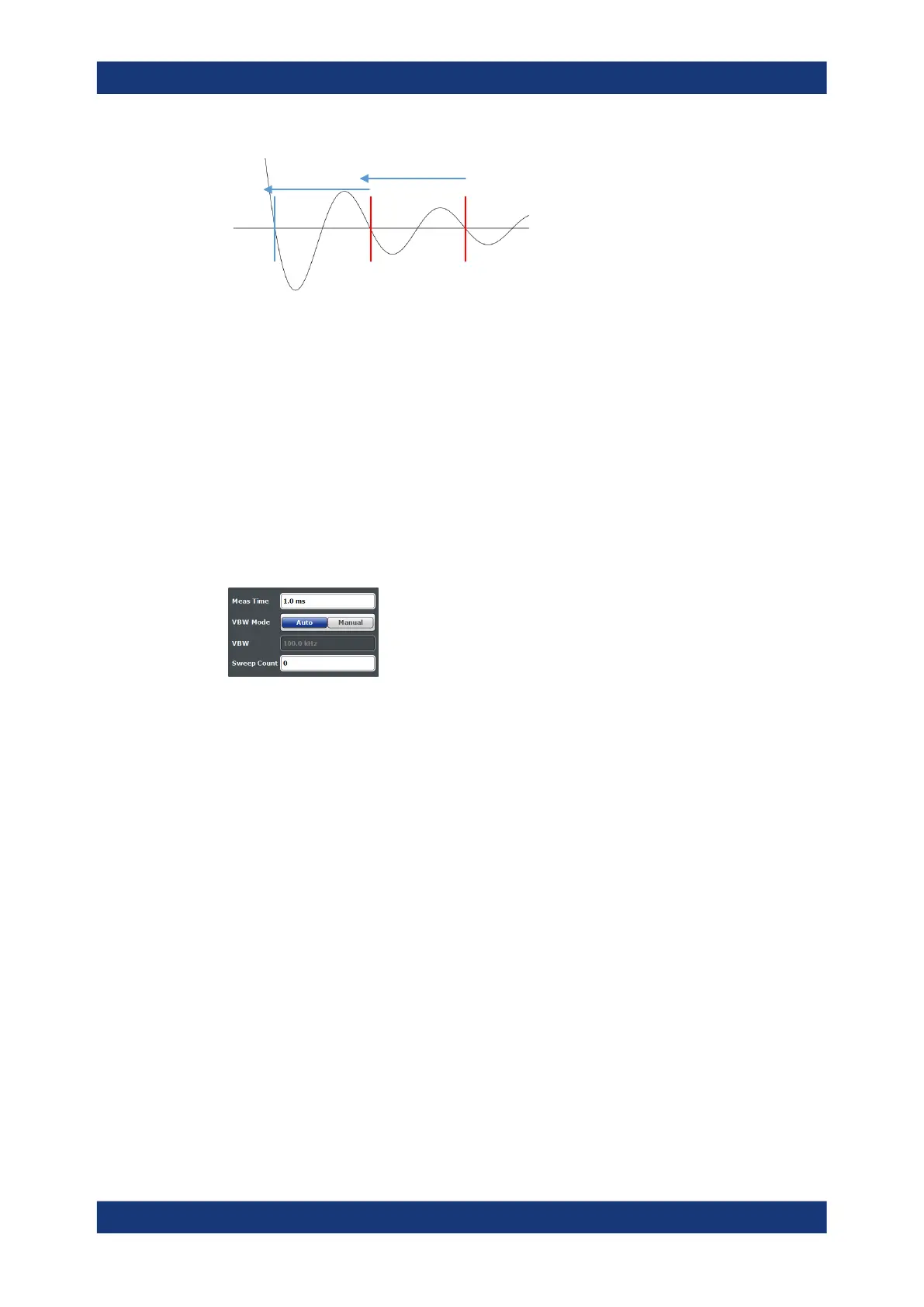

Desired
trigger event
Drop-out time
Undesired
trigger event
Undesired
trigger event
Drop-out time
For the external trigger, the drop-out time defines a minimum duration that the input
signal must stay below the trigger level before triggering again. The dropout time helps
you stabilize triggering when the analyzer is triggering on undesired events.
Remote command:
TRIGger[:SEQuence]:DTIMe on page 391
6.9.3 Data Acquisition
Access: "Overview" > "Data Acquisition"
The data acquisition settings configure the signal capture. The measurement time
defines the scale of the x-axis.
The remote commands required to configure the data acquisition are described in
Chapter 11.6.9.3, "Data Acquisition", on page 390.
Functions in the "Data Acquisition" dialog box described elsewhere:
●
Sweep count: " Sweep/Average Count " on page 115
●
Continuous sweep: " Continuous Sweep / Run Cont " on page 85
●
Single sweep: " Single Sweep / Run Single " on page 85
●
Continue single sweep: " Continue Single Sweep " on page 86
Defining the measurement time.................................................................................. 136
Defining the video bandwidth......................................................................................137
Defining the measurement time
The measurement time defines for how long the R&S FSPN measures the transient
response.
The R&S FSPN always matches the scale of the x-axis of the result displays to the
measurement time.
Remote command:
[SENSe:]SWEep:TIME on page 365
