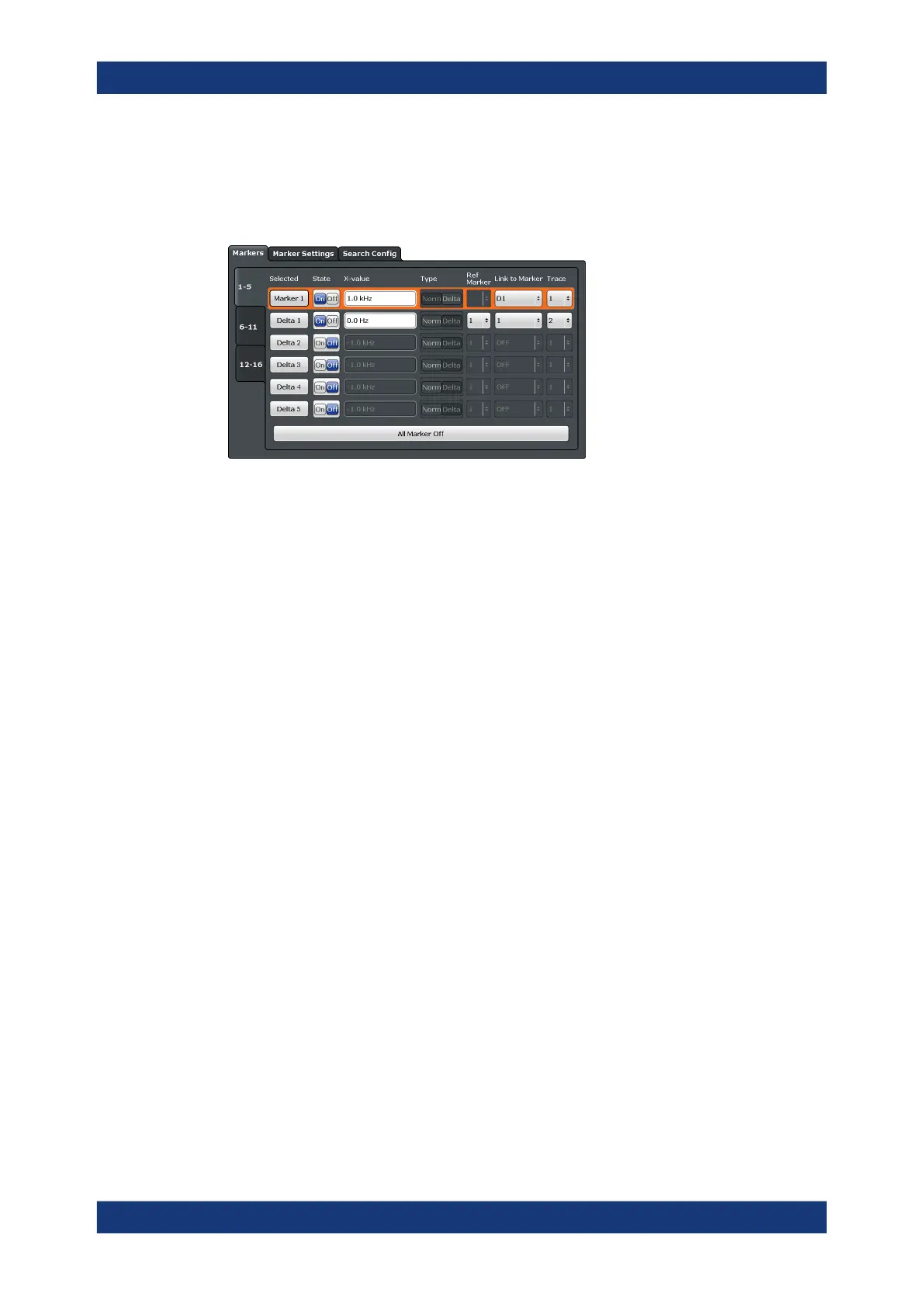

The markers are distributed among 3 tabs for a better overview. By default, the first
marker is defined as a normal marker, whereas all others are defined as delta markers
with reference to the first marker. All markers are assigned to trace 1, but only the first
marker is active.
The remote commands required to define these settings are described in Chap-
ter 11.7.4, "Marker", on page 425.
Selected Marker .........................................................................................................168
Marker State ...............................................................................................................168
Marker Position X-value .............................................................................................168
Marker Type ............................................................................................................... 169
Reference Marker ...................................................................................................... 169
Linking to Another Marker ..........................................................................................169
Assigning the Marker to a Trace ................................................................................ 169
Select Marker .............................................................................................................169
All Markers Off ............................................................................................................170
Selected Marker
Marker name. The marker which is currently selected for editing is highlighted orange.
Remote command:
Marker selected via suffix <m> in remote commands.
Marker State
Activates or deactivates the marker in the diagram.
Remote command:
CALCulate<n>:MARKer<m>[:STATe] on page 429
CALCulate<n>:DELTamarker<m>[:STATe] on page 427
Marker Position X-value
Defines the position (x-value) of the marker in the diagram. For normal markers, the
absolute position is indicated. For delta markers, the position relative to the reference
marker is provided.
Remote command:
CALCulate<n>:MARKer<m>:X on page 430
CALCulate<n>:DELTamarker<m>:X on page 428
