Block Diagram

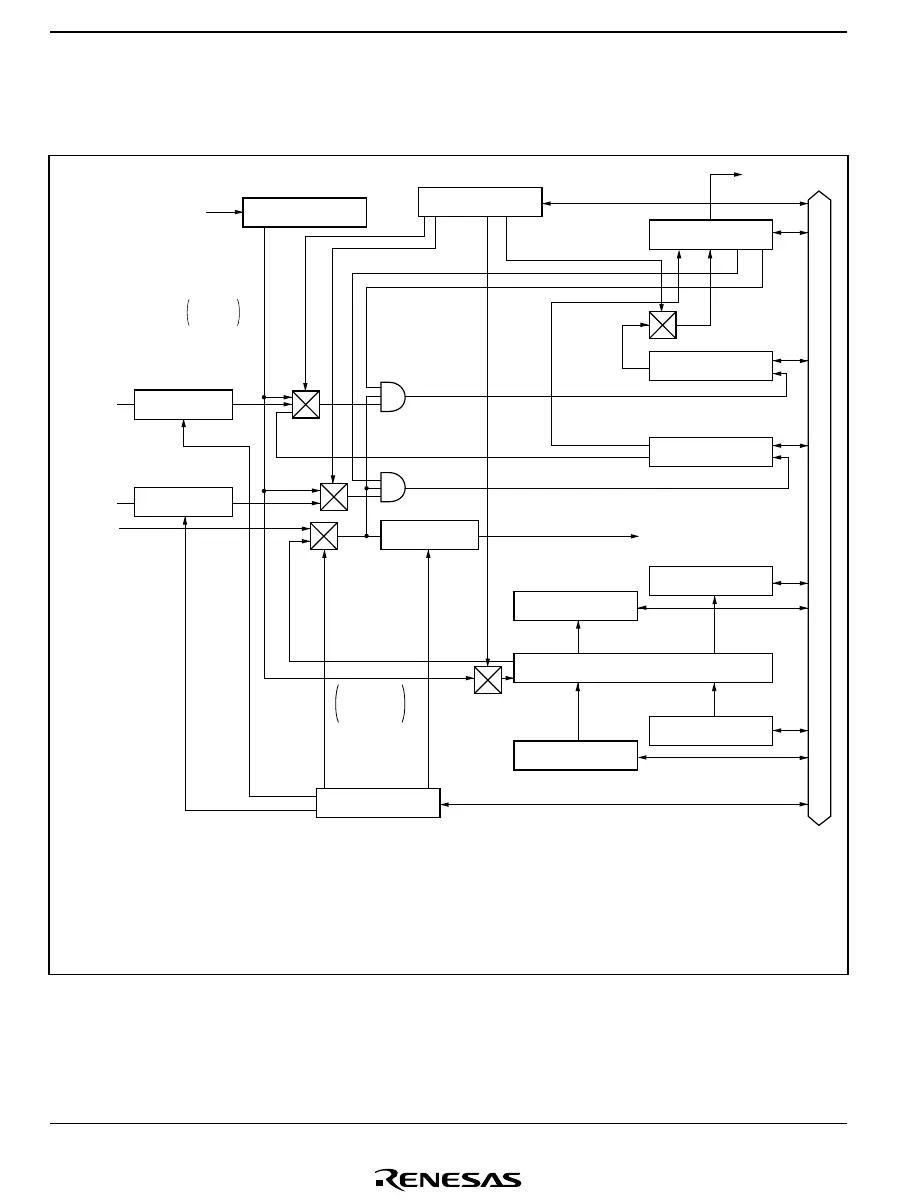

Figure 9.19 shows a block diagram of the asynchronous event counter.

AEVH

AEVL

IRQAEC

IECPWM

ECCR

PSS

ECCSR

OVH

OVL

ECPWCRH

ECPWDRH

AEGSR

ECPWCRL

Internal data bus

ECPWDRL

ECH

(8 bits)

ECL

(8 bits)

IRREC

To CPU interrupt

(IRREC2)

Edge sensing

circuit

Edge sensing

circuit

Edge sensing

circuit

PWM waveform generator

φ/2

φ/4, φ/8

/2,

/4,

/8,

/16,

/32,

/64

[Legend]

ECPWCRH: Event counter PWM compare register H

ECPWDRH: Event counter PWM data register H

AEGSR: Input pin edge select register

ECCSR: Event counter control/status register

ECH: Event counter H

ECL: Event counter L

ECPWCRL: Event counter PWM compare register L

ECPWDRL: Event counter PWM data register L

ECCR: Event counter control register

Figure 9.19 Block Diagram of Asynchronous Event Counter
