Section 10 Serial Communication Interface
Rev. 7.00 Mar 10, 2005 page 386 of 652
REJ09B0042-0700
0 7 15 0 7 15 0
Internal
basic clock
Receive data
(RXD32)
Start bit D0
16 clock pulses
8 clock pulses
D1
Synchronization
sampling timing
Data sampling
timing

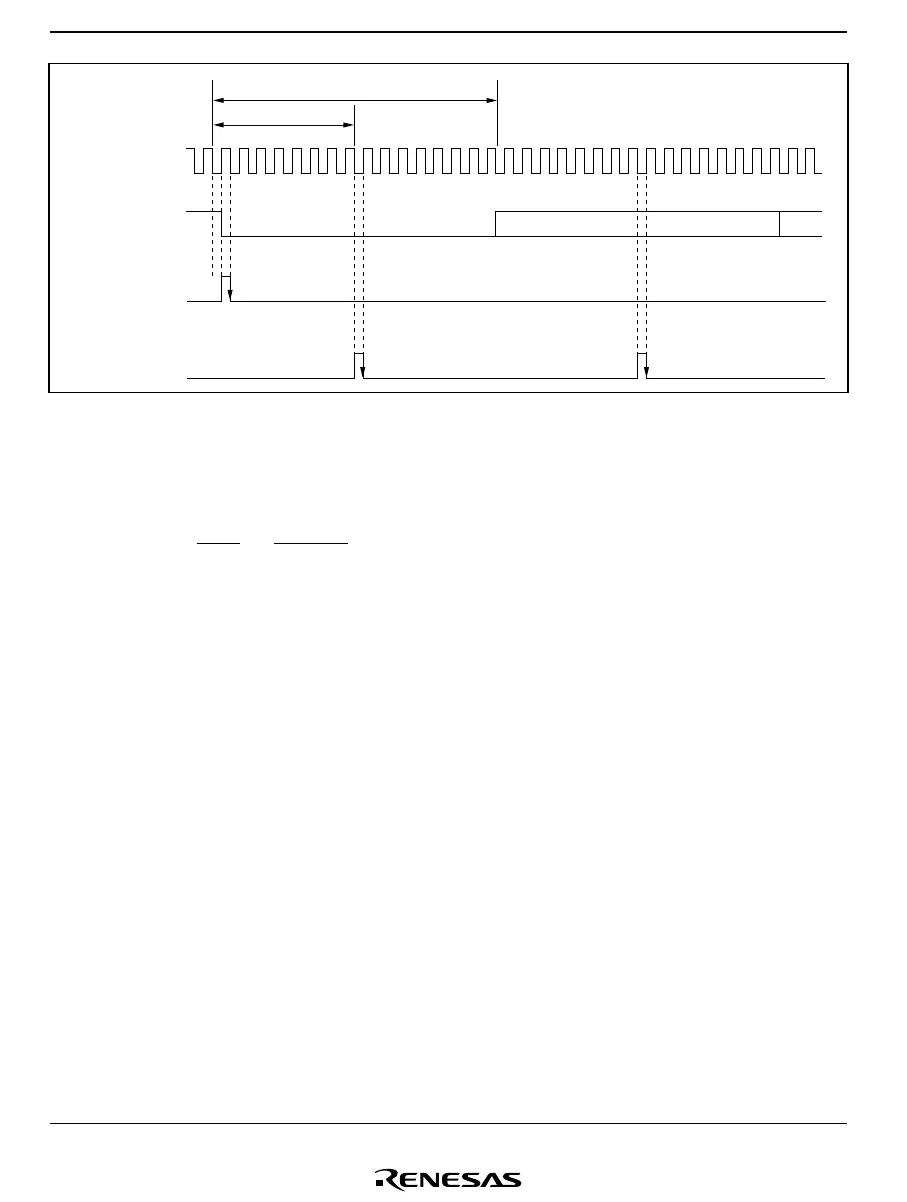

Figure 10.21 Receive Data Sampling Timing in Asynchronous Mode
Consequently, the receive margin in asynchronous mode can be expressed as shown in equation
(1).
1D – 0.5
M ={(0.5 –
2N
) –
N
– (L – 0.5) F} • 100 [%] ..... Equation (1)
where M: Receive margin (%)
N: Ratio of bit rate to clock (N = 16)
D: Clock duty (D = 0.5 to 1.0)
L: Frame length (L = 9 to 12)
F: Absolute value of clock frequency deviation
Substituting 0 for F (absolute value of clock frequency deviation) and 0.5 for D (clock duty) in
equation (1), a receive margin of 46.875% is given by equation (2).
When D = 0.5 and F = 0,
M = {0.5 – 1/(2 × 16)} • 100 [%]
= 46.875% .... Equation (2)
However, this is only a computed value, and a margin of 20% to 30% should be allowed when
carrying out system design.
