4-74 ECODRIVE03 DKC**.040, DKC**.100, DKC**.200 ECODRIVE03 Drive Controllers
Setting the Drive Address
Two decade switches are used to set the drive address. It can be set to
any number between 1 and 99.
Example:
Switch setting S3 = 9 (value of tens)
Switch setting S2 = 1 (value of ones)
Drive address = 9 * 10 + 1 = 91
FP5032F1.FH7
Switch S3
Switch S2
Barcode
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
H1
S1
S3 S2
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
Set drive address: 91

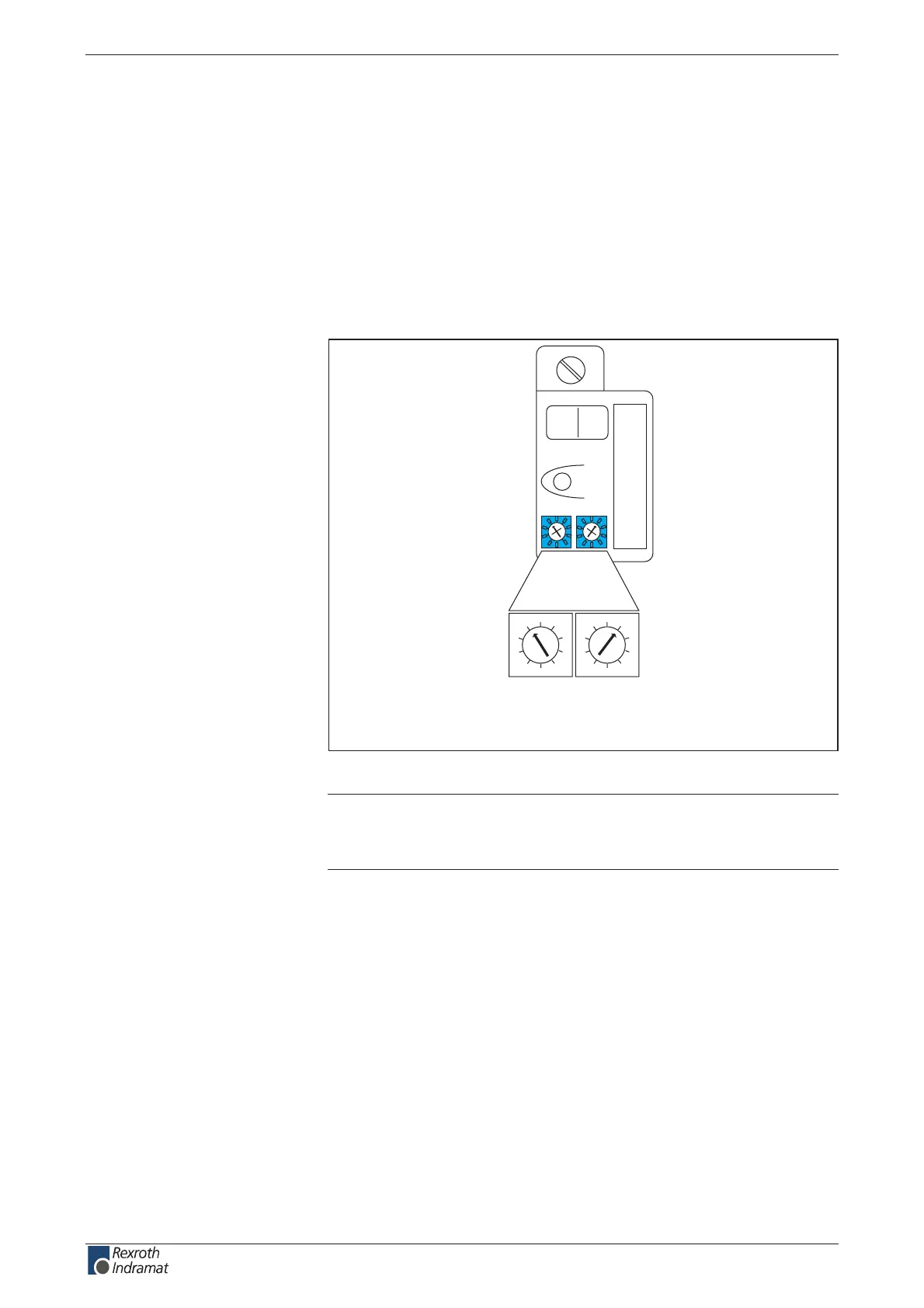

Fig. 4-109: Setting the drive address using a decade switch
Note: The address is not set at delivery.
The setting of switches S2 and S3 depends on the model,
rmware and the drive address wanted.
 See rmware functional description.
Switch S2, S3;
drive address:
