Rexroth Indramat ECODRIVE03 Series User Manual

12-12 srellortnoC evirD 30EVIRDOCEtenibaC lortnoC eht gnitcurtsnoC
Arranging ECODRIVE03 Components in the Control Cabinet
Multiple Row Construction of the Control Cabinet
Note: In particular when arranging ECODRIVE03 components in
multiple rows within the control cabinet, it is important to note
the entrance temperature (see technical data) and, if
necessary, mount air guiding plates with blowers.
For example:
air bae
Additional
fan
Discharge direction of the
warmed air in the ow-o area
Discharge direction of the
warmed air in the ow-o area
Entry area of the cooling air
for the upper device line
Entry area of the cooling air
for the lower device line
Exhaust air
from the air
conditioner
Supply air
from the air
conditioner

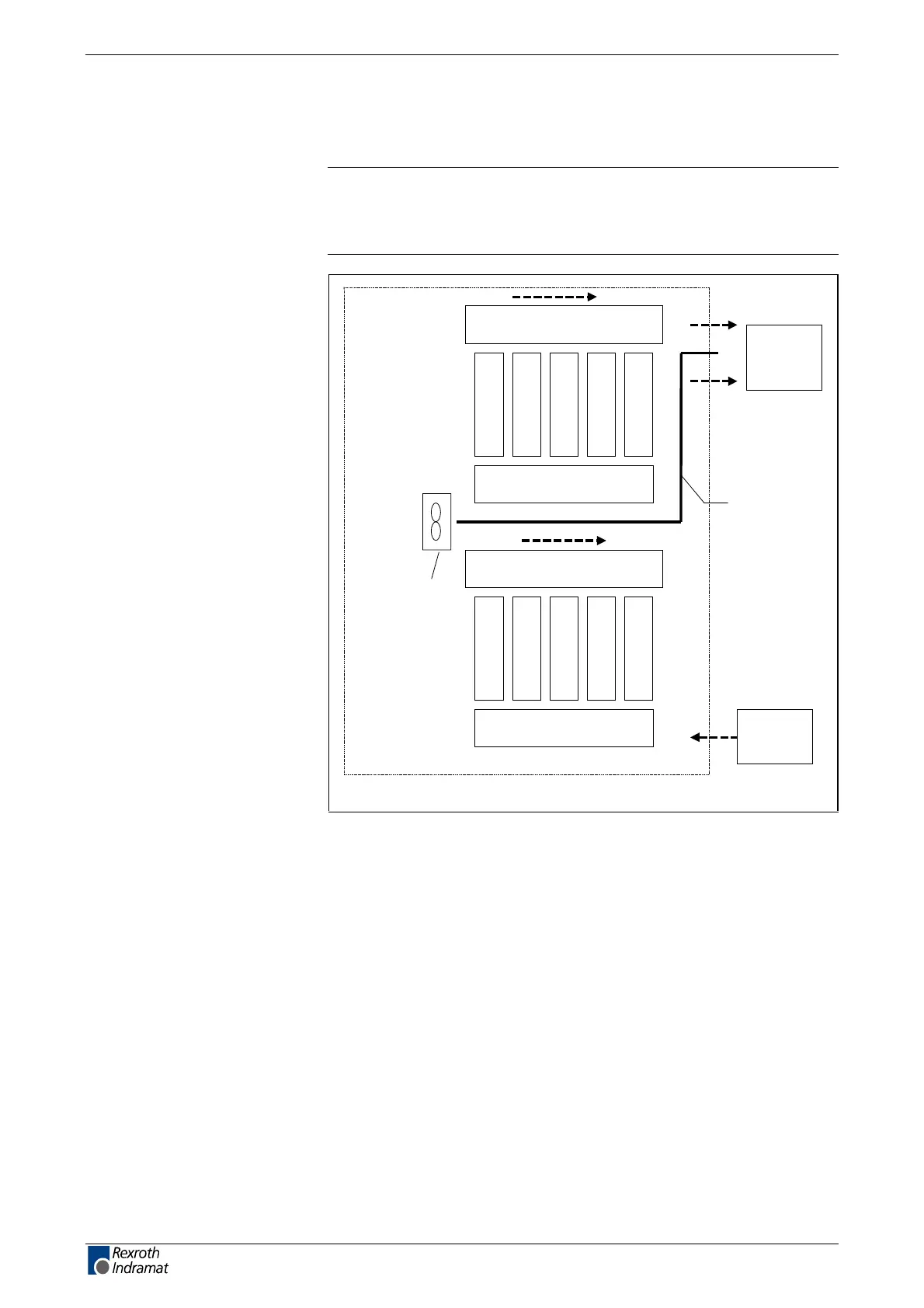

Fig. 12-17: Example of arranging ECODRIVE components in multiple rows
See also page 16-7: "Control Cabinet Construction with
Recommendations for EMC and Cooling “.
