Allowed DC bus continuous power with single-phase mains connection
The operation of a single-phase mains supply reduces the allowed DC
bus continuous power as per the following diagram.
Note: The single-phase mains connection is only permitted with
single source supply!
With single-phase operation peak power in the DC bus is the
same as continuous power.
Allowed DC bus continuous power in single-phase mode
at supply networks with a frequency of 50 Hz
U
N
[V]
P
ZWD
[W]
0
100
250
200 300 400 500 600
50
150
200
300
350
400
100
Kl0003.fh7

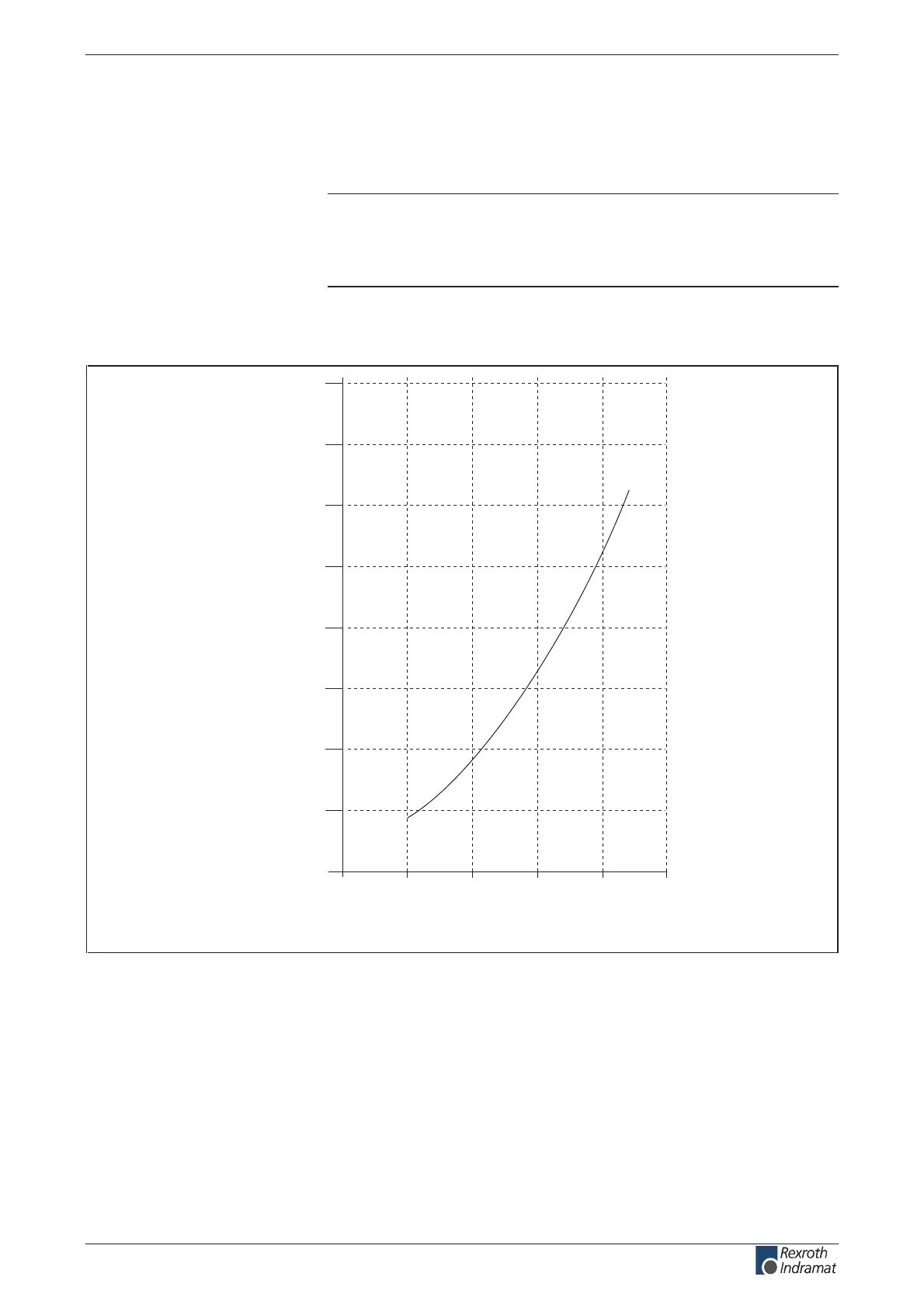

Fig. 5-14: Allowed DC bus continuous power in single-phase mode with 50 Hz
