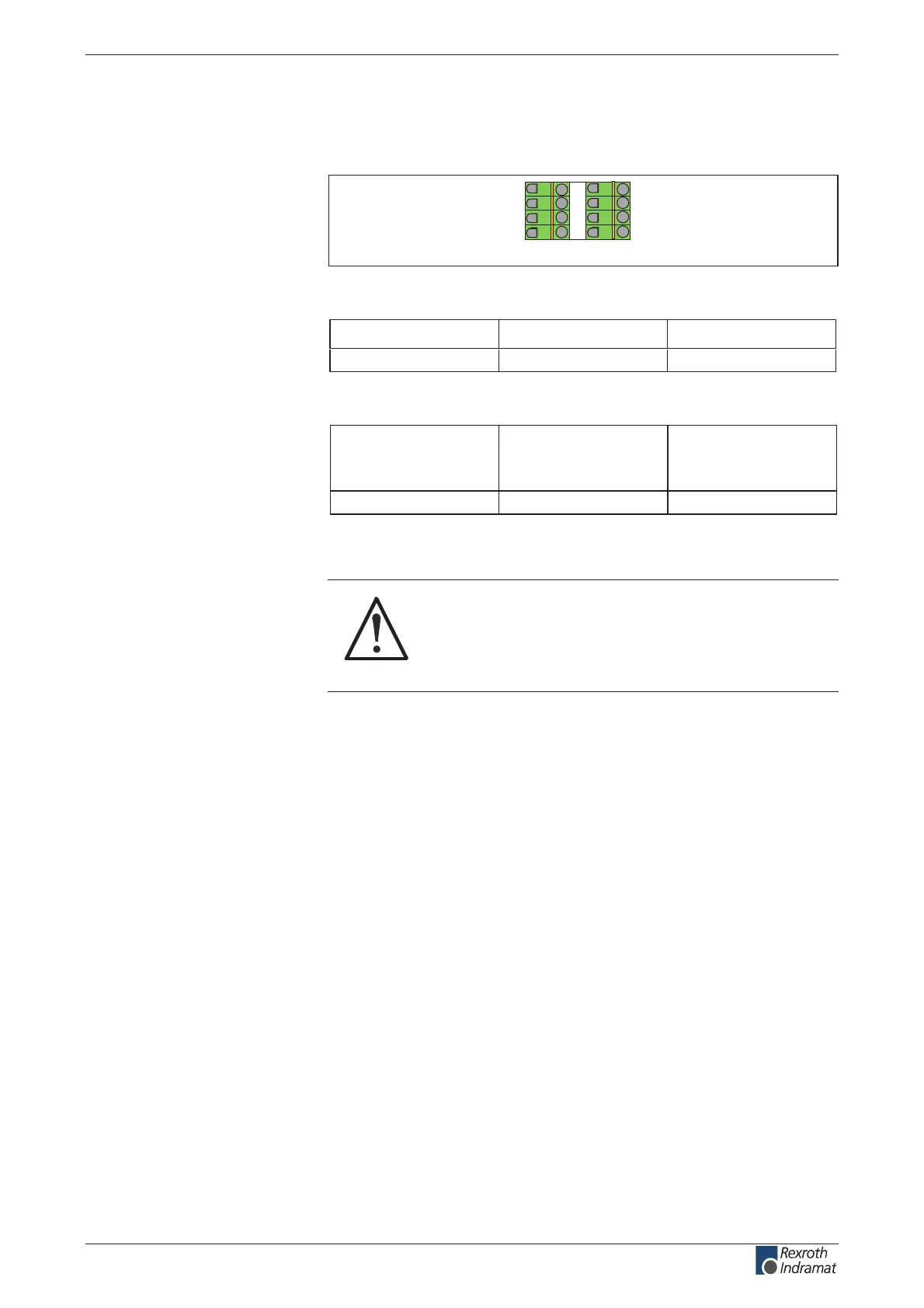

ECODRIVE03 Drive Controllers ECODRIVE03 DKC**.040, DKC**.100, DKC**.200 4-67
X6, Motor temperature monitoring and holding brakes
Technical description of connector
Ap5264f1.FH7
123 4
567 8
Fig. 4-98: Connector X6
Type No. of pins Design
Spring contact 2 x 4 Bushing on connector
Fig. 4-99: Design
Cross section
single wire
[mm ²]
Cross section
multi core wire
[mm ²]
Cross section
in AWG
Gauge no.:
0.2-2.5 1,5-2,5 16-12
Fig. 4-100: Connection cross section
CAUTION
Damages by exchanging the connectors X6.1-4
and X6.5-8!
 Do not exchange connectors X6.1-4 and X6.5-8.
 Only use lines with sucient cross section.
Illustration:
Design:
Connection cross section:
