H1, S1, S2, S3: Diagnostic display, Reset key, Address switch

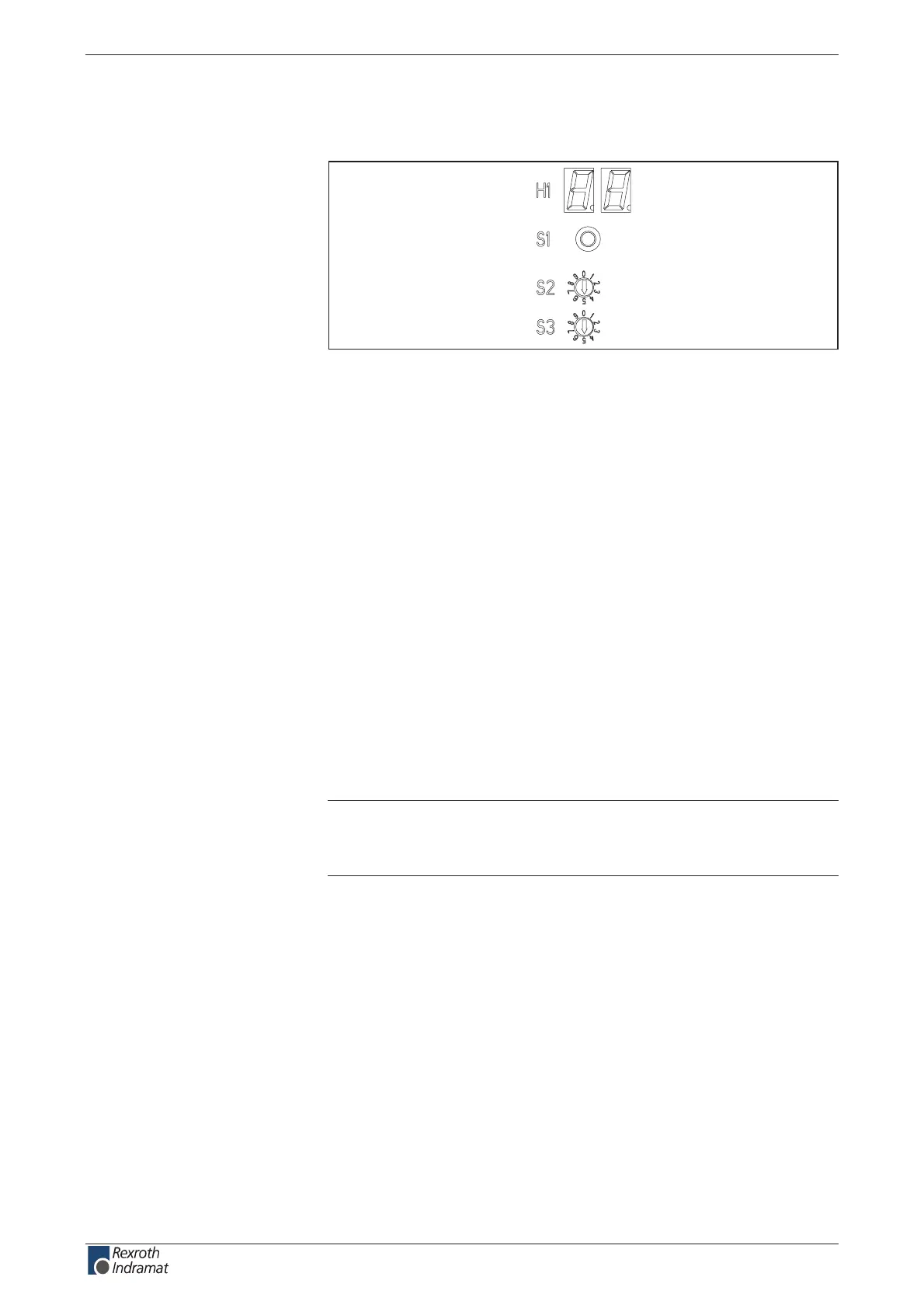

Fig. 5-70: H1: Diagnostic display, S1: Reset key, S2, S3: Address switch
H1
Number of diagnostic messages (errors and operating states).
S1
• Key for resetting diagnostic displays of errors
• Key for updating rmware
S2, S3
Switch for setting the drive address.
Two decade switches are used to set the drive address. It can be set to
any number between 1 and 99.
Example:
Switch setting S3 = 9 (value of tens)
Switch setting S2 = 1 (value of ones)
Drive address = 9 * 10 + 1 = 91
Note: The address is not set at delivery.
The setting of switches S2 and S3 depends on the model,
rmware and the drive address wanted.
 see functional rmware description
Address switch S2, S3;
Drive address
