7-2 ECODRIVE03 Auxiliary Capacitance Module CZM01.3 ECODRIVE03 Drive Controllers
7.2 Technical data
Dimensions

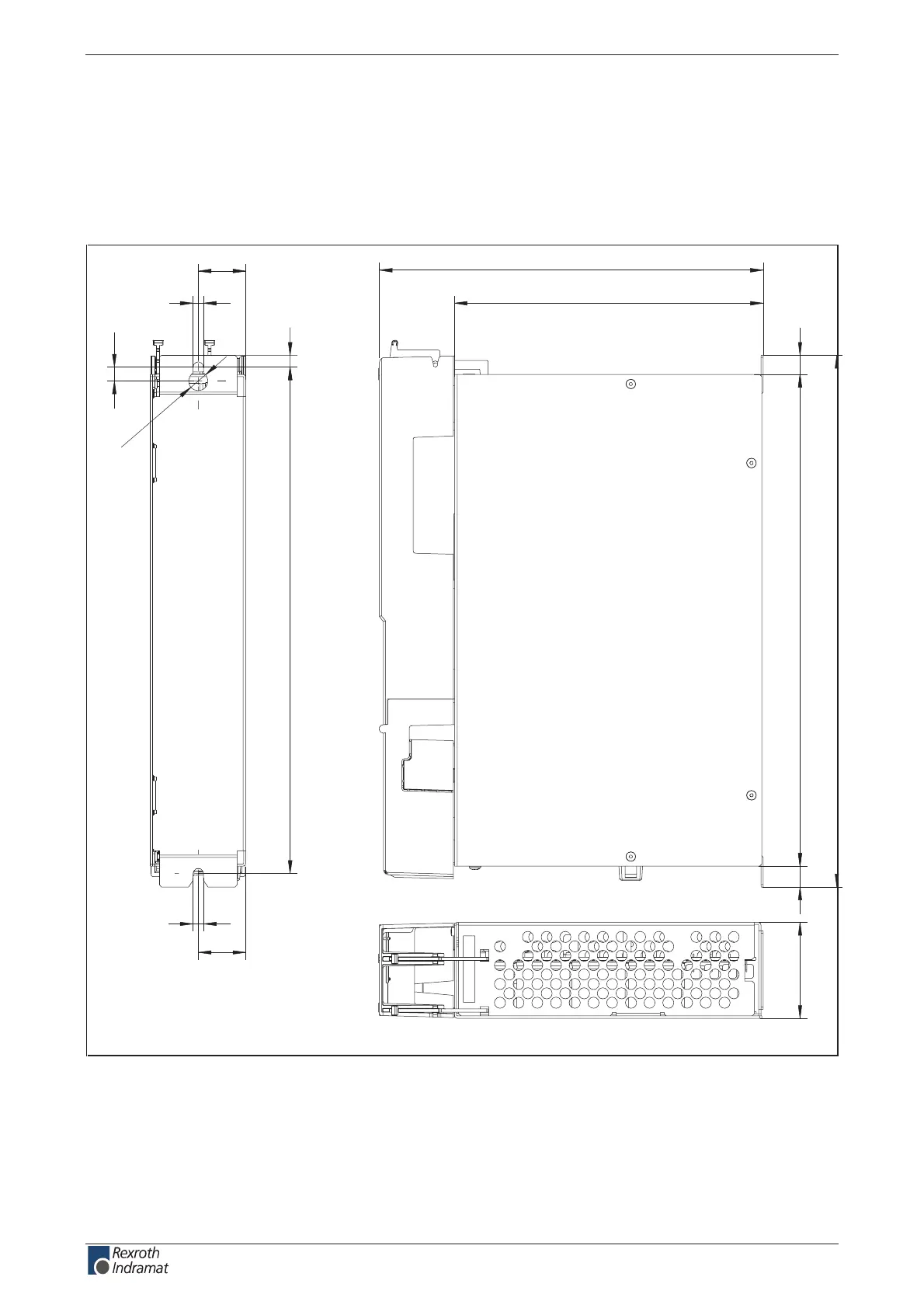

Dimension sheets auxiliary capacitance module
CZM01.3
210
14 333
65
32.5
32.5
261
7
7
13
9.5
343
13
8
MB5042F1.FH7
360
Fig. 7-1: Dimensions of the auxiliary capacitance module CZM01.3
Also see page 12-1: "Constructing the Control Cabinet"
