Rexroth Indramat ECODRIVE03 Series User Manual

tenibaC lortnoC eht gnitcurtsnoCsrellortnoC evirD 30EVIRDOCE 12-11
Module widths
70 90 110 172.5 235 152.5
16A
40A
CZM
BZM
100A 100A 200A 200A
MB5062F1.FH7
16A
40A
CZM
BZM
16A
40A
CZM
BZM

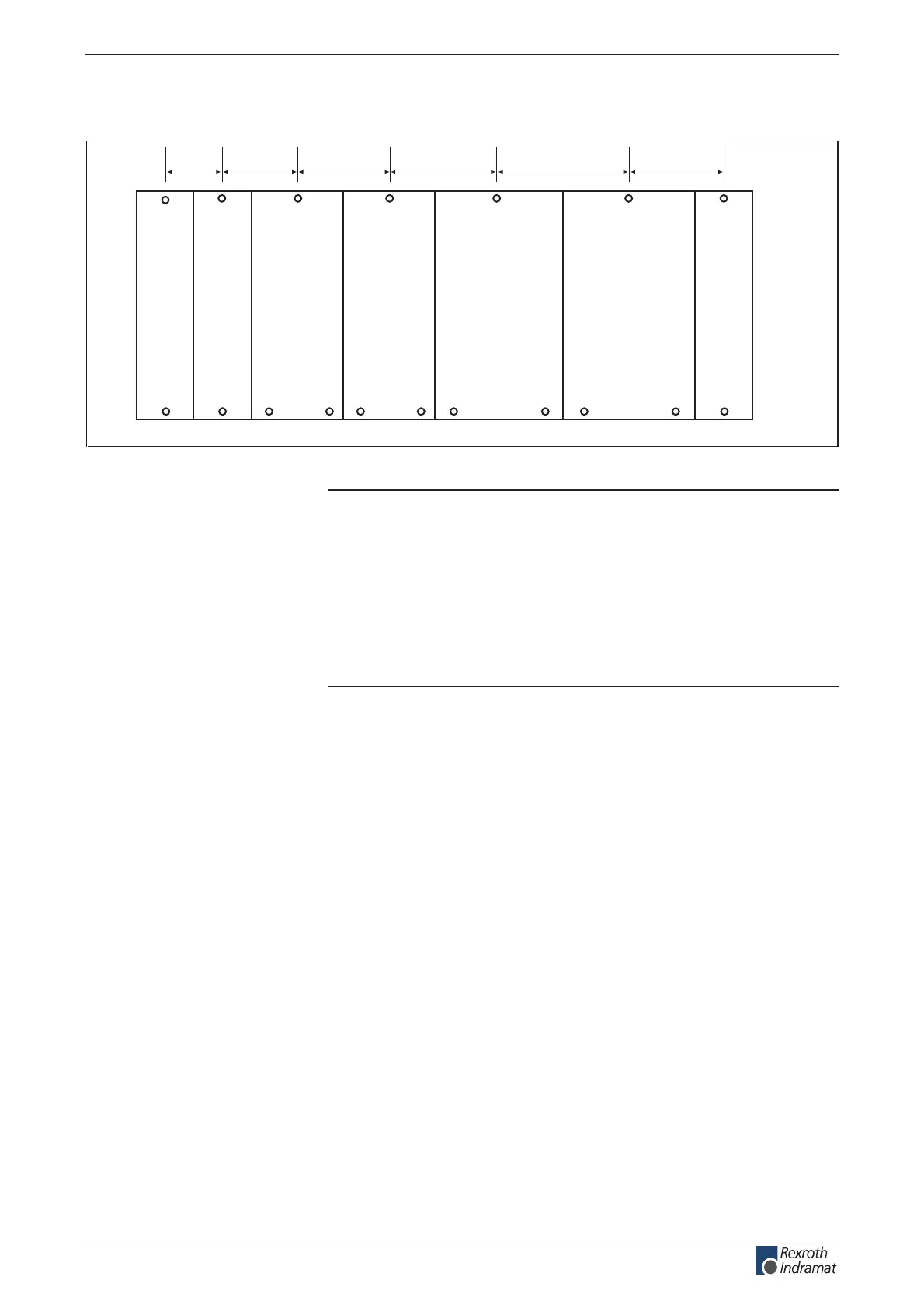

Fig. 12-16: Module widths
Note: Using the specied increments, there is a distance of 5 mm
between the units.
In order to observe the specied vibration fatigue limit (see
page 4-5), please note the following:
• In case fastening screws are part of the drive controller ’s
scope of supply, you have to use these screws for
mounting the drive controller.
• In the case of the DKC**.3-100 and DKC**.3-200 drive
controllers, you have to use the two outer fastening holes.
