8 Choke GLD 12
8.1 General
The use of choke GLD 12 increases the allowed DC bus continuous
power.
8.2 Dimensions and Mounting Dimensions
M6x20 (GLD12)
C
E
F
A
B
H
I
J
H
H
1.1
2.1
1.2
2.2
1
2
MB5044F1.FH7
2
1
1: Electrical connection
2: Slot in "J" direction

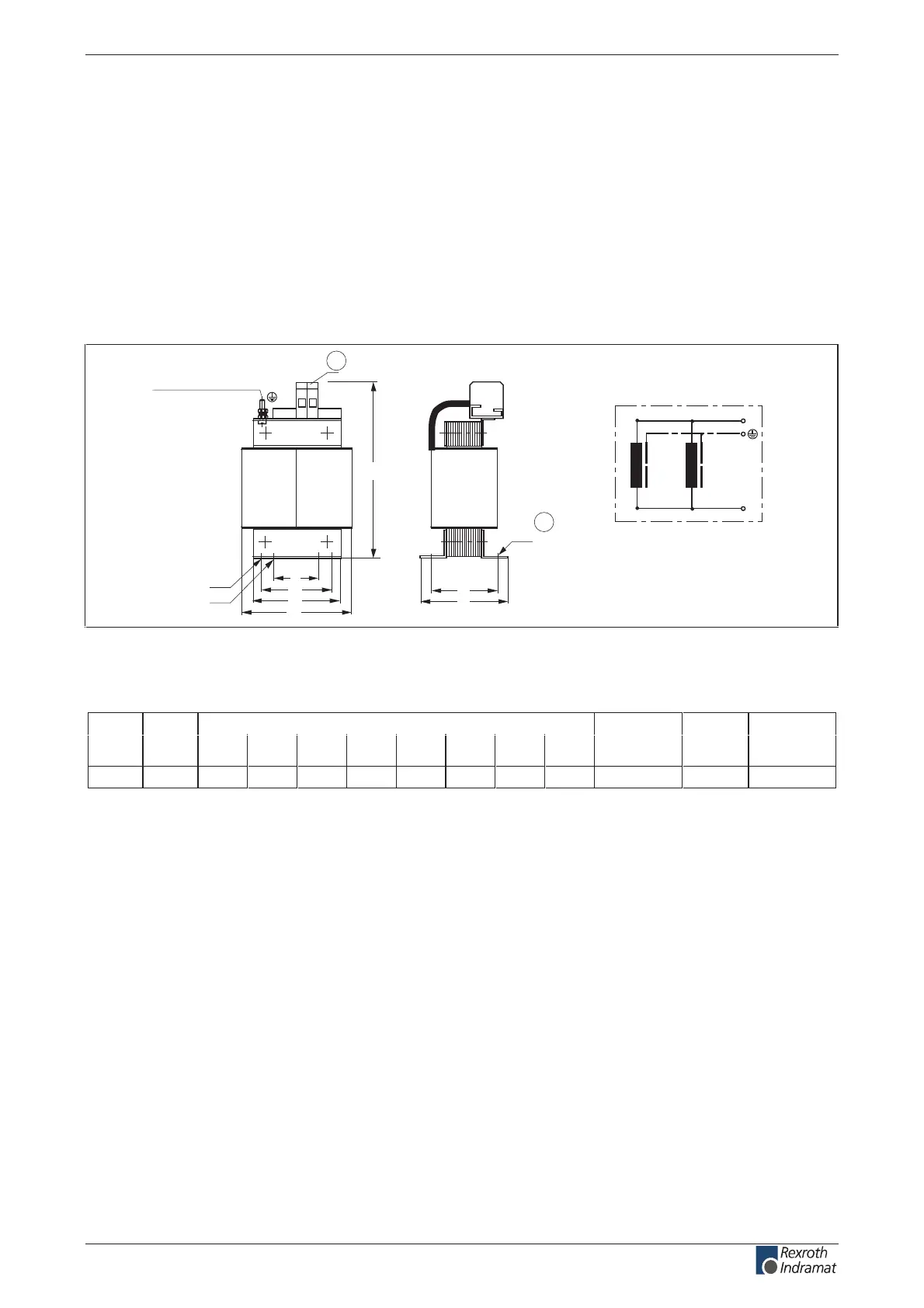

Fig. 8-1: Dimensions GLD 12
Maße in mm
Type mH/A
A B C E F H Ø I J
Maximum
connection
cross section
Mass
kg
Power
dissipation
W
GLD12 1.0/100 160 121 285 60 100 7x14 97 121 35 mm ² 13.5 100
Fig. 8-2: Technical data for GLD 12
see page 4-93: "X12, Optional Choke Connection for DKC**.3-200-7"
Connection
GLD 12:
