6-6 ECODRIVE03 Auxiliary Bleeder Module BZM01.3 ECODRIVE03 Drive Controllers
6.3 Electrical Connections BZM01.3
Front View
FA5038F1.FH7

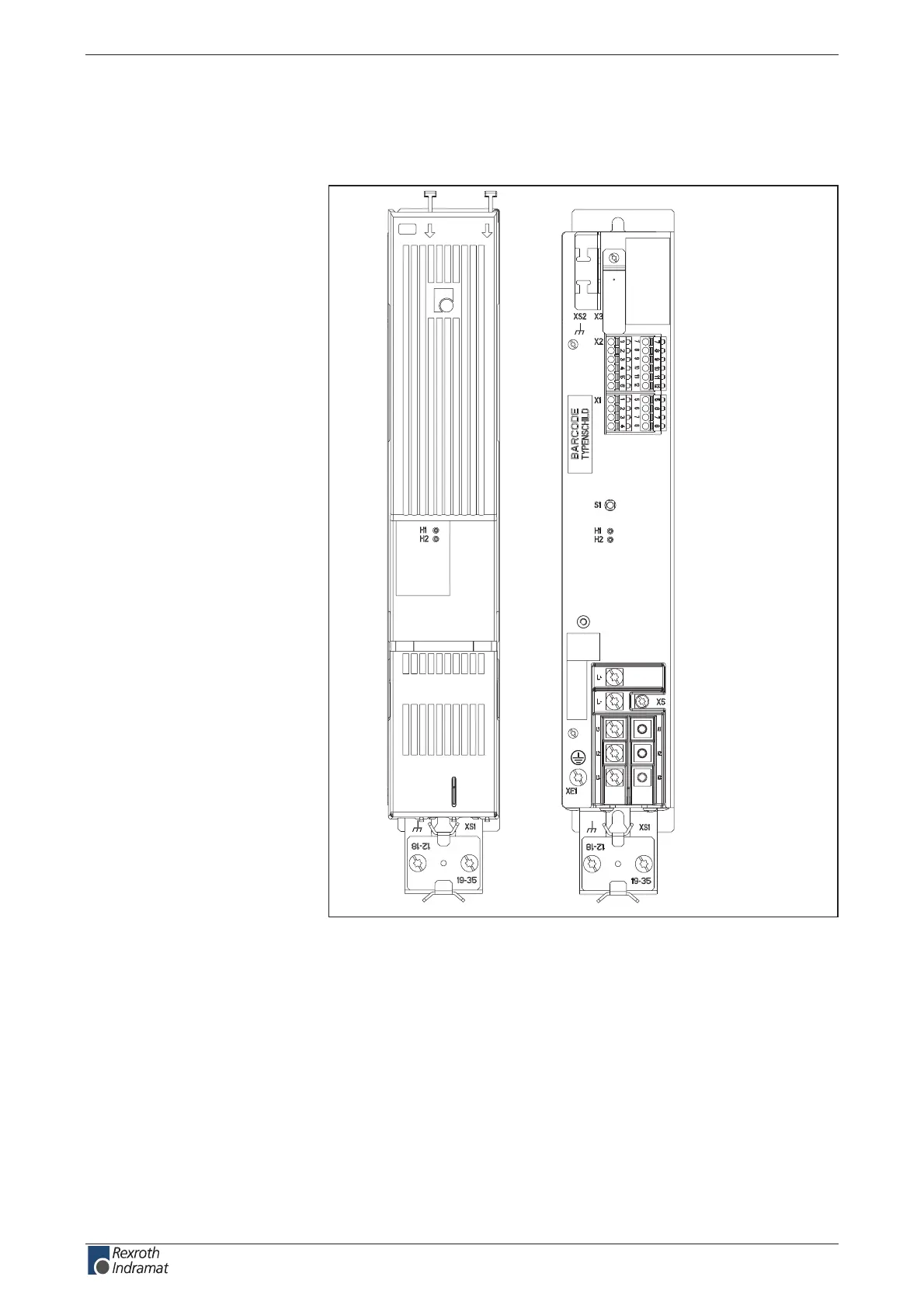

Fig. 6-8: Front view Auxiliary Bleeder Module BZM01.3
S1: Reset key
H1: Diagnosis green
H2: Diagnosis red
