ECODRIVE03 Drive Controllers ECODRIVE03 Auxiliary Bleeder Module BZM01.3 6-11
V 04 CD:egatlov gnihctiwS .xam
A 1 CD:tnerruc gnihctiwS .xam
A 1 CD:tnerruc suounitnoc .xam
Am 01:daol tcatnoc muminiM
Guaranteed number of switching operations
at max. time constant of load < 50 ms:
250.000
The Bb contact is open if:
• the control voltage for the BZM01.3 has not been applied or
• if there is an error in the BZM01.3
How to use the contact, see page 11-2: "Control Circuits for the Mains
Connection".
WARNING
Damage possible if Bb contact not connected!
The Bb contact acknowledges auxiliary bleeder readiness
to the application of power.
 Integrating the Bb contact of the BZM01.3 as per
"Control Circuits for Connect the Mains".
X2, DC bus dynamic brake (ZKS), Diagnostic Signals
Technical description of connector
Ap5269f1.FH7
123 4 5 6
7
9
1011 12
8

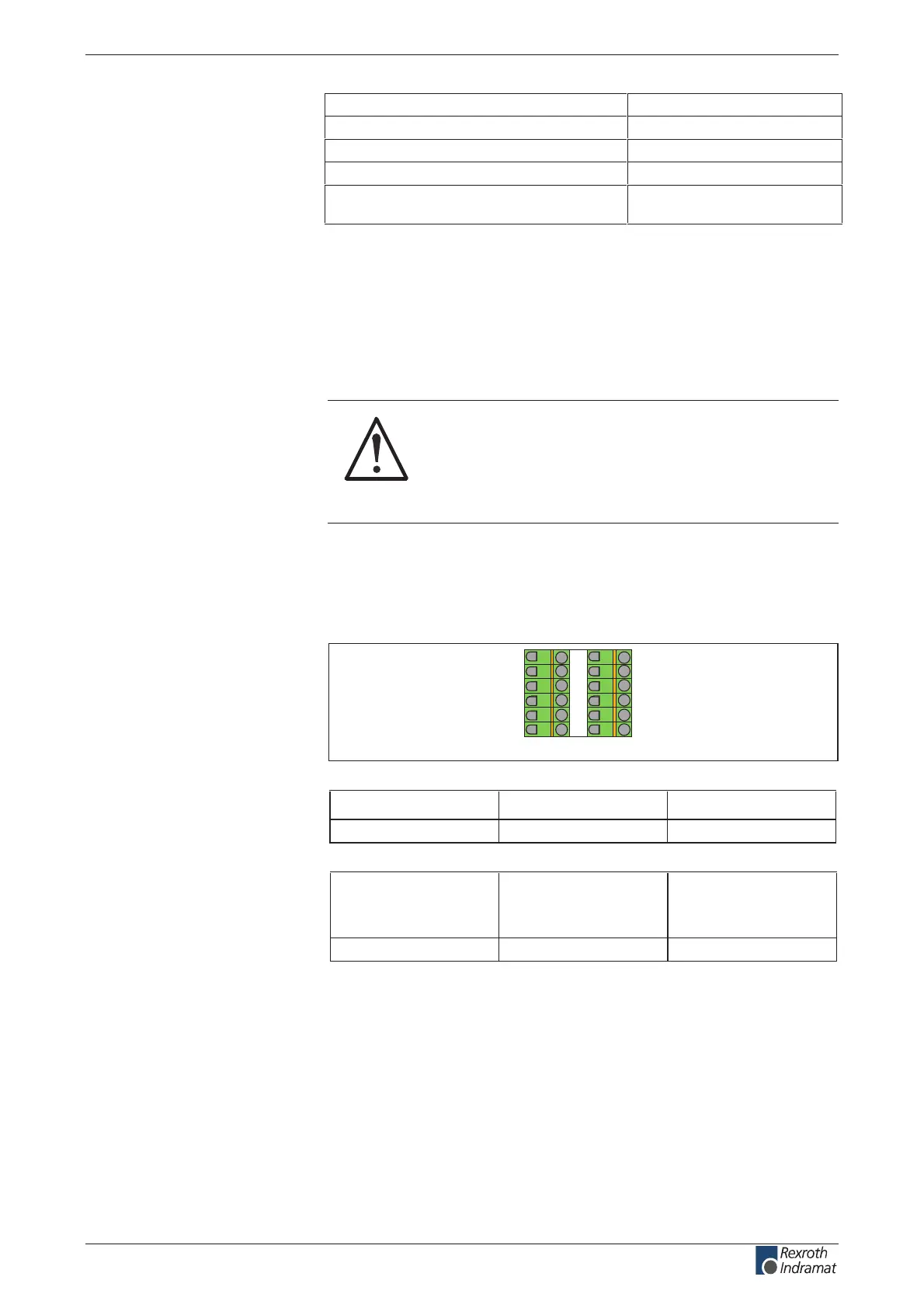

Fig. 6-17: Connector X2
Type No. of pins Design
spring contact 2 x 4 bushing on connector
Fig. 6-18: Design
Cross section
single wire
[mm ²]
Cross section
multi core wire
[mm ²]
Cross section
in AWG
gauge no.:
0.2-2.5 0.2-1.5 24-16
Fig. 6-19: Connection cross section X2
Loadability of the connection
Bb:
Switching states
Bb:
Illustration:
Design:
Connection cross section:
