Rexroth Indramat ECODRIVE03 Series User Manual

4-28 ECODRIVE03 DKC**.040, DKC**.100, DKC**.200 ECODRIVE03 Drive Controllers
Allowed DC bus continuous power without auxiliary components
DKC**.3-040-7 in "Single source supply":
0
0,2
0,4
0,6
0,8
1
1,2
1,4
1,6
1,8
200 250 300 350 400 450 500
Line input voltage U
N1
3*AC in V
P
ZWD
in kW

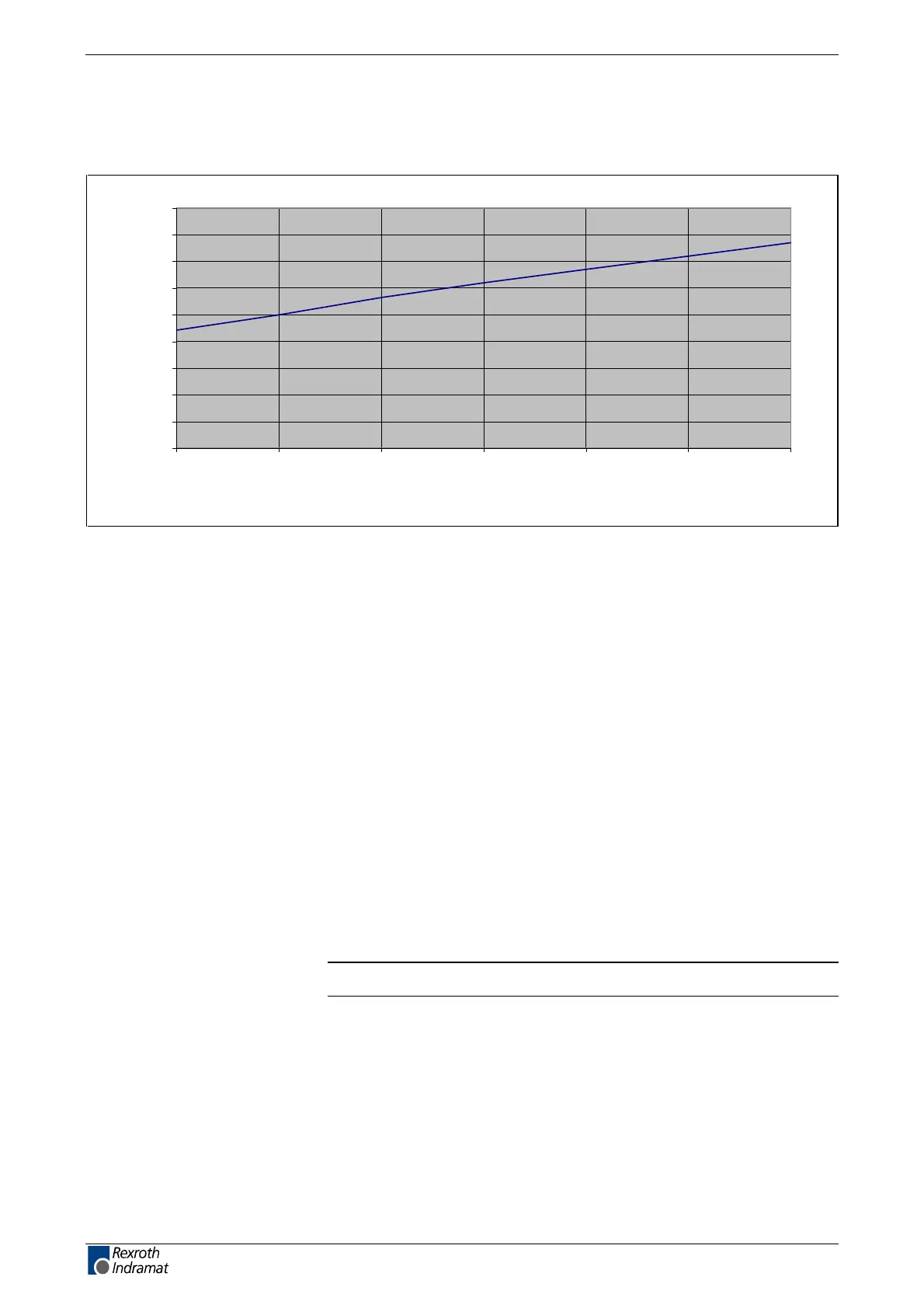

Fig. 4-30: Allowed DC bus continuous power for Single source supply
DKC**.3-040-7
DKC**.3-040-7 in "Group supply without DC bus
connection":
No increase in the allowed continuous power rating!
See page 4-23: "Arranging the Group supply without DC bus connection"
DKC**.3-040-7 in "Group supply with DC bus
connection":
Further DKC**.3-040-7 devices on the common DC-bus increase the
available continuous power. The increase can be seen in the diagram
"Fig. 4-30: Allowed DC bus continuous power for Single source
supply DKC**.3-040-7". It represents 80% of the value indicated.
DKC**.3-040-7 in "Central supply":
DKC**.3-040-7 as supply in "central supply" not allowed !
Note: Denition of terms, see page 4-19: "Mains supply options".
