5-36 srellortnoC evirD 30EVIRDOCE610-3.**CKD 30EVIRDOCE
X6, Motor temperature monitoring and holding brakes
Technical description of connector
Ap5382f1.FH7
123
456

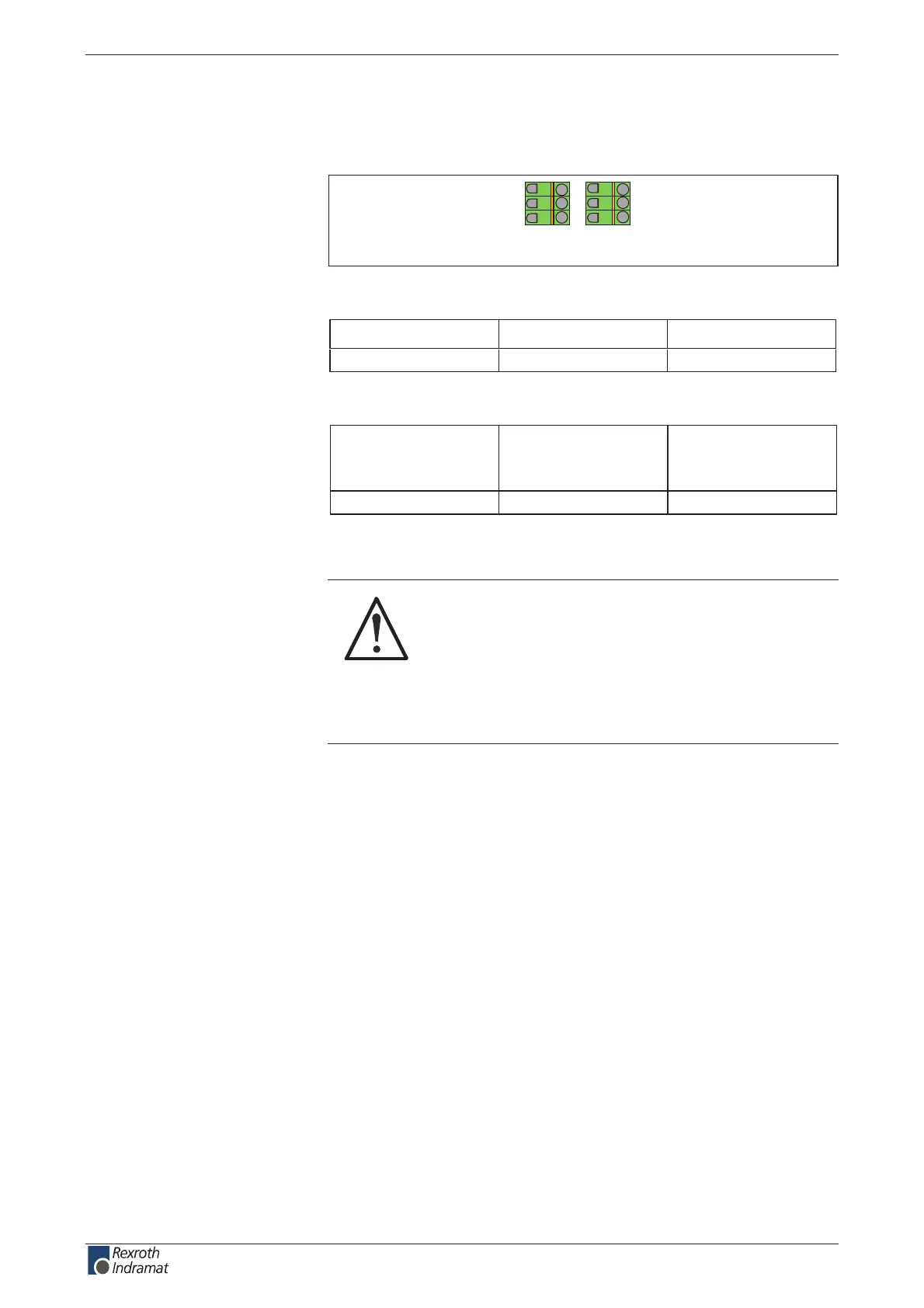

Fig. 5-59: Connector X6
Type No. of pins Design
Spring contact 2 x 3 Bushing on connector
Fig. 5-60: Design
Cross section
single wire
[mm ²]
Cross section
multi core wire
[mm ²]
Cross section
in AWG
Gauge no.:
0.2-2.5 1.5-2.5 16-12
Fig. 5-61: Connection cross section
CAUTION
Damages by exchanging the connectors X6.1-3
and X6.4-6!
 Do not exchange connectors X6.1-3 and X6.4-6.
 Only use lines with sucient cross section.
 Strong mechanical inuence on the test tap of the
terminals can increase the transition resistance and
destroy the terminals.
Illustration:
Design:
Connection cross section:
