Motor temperature monitoring (TM+, TM)
Connections TM+ and TM- are used to evaluate the temperature of
connected Rexroth Indramat motors. These are equipped with a
temperature-dependent resistor (either PTC or NTC dependent on the
motor type) to monitor temperature. The connection leads are in the
motor power cable.
AP5383F1.FH7
X6
1
2
TM+
TM-
3
4
5
6
motor temperature monitoring
device-external device-internal

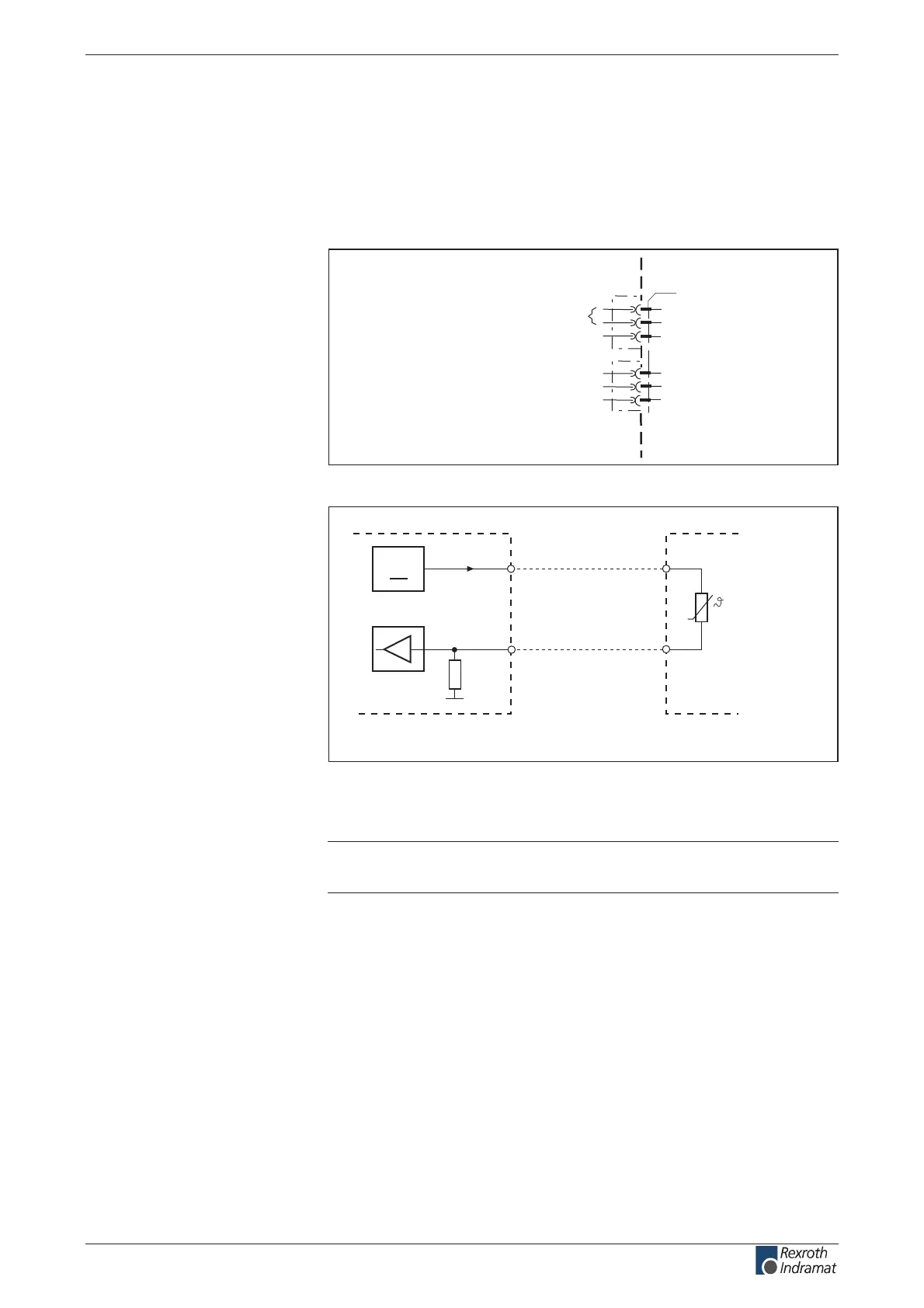

Fig. 5-62: Motor temperature monitoring
AP5326F1.FH7
G
R
TM+
TM-
U
ROTOM3.**CKD
Schematics
U: approximately 5V
R: approximately 2k
Fig. 5-63: Motor temperature evaluation
Note: Connections TM+ and TM- are only to be used with Rexroth
Indramat motors.
 See also functional rmware description: "Temperature monitoring".
Connection
monitoring
TM+, TM-:
Motor temperature evaluation:
