ECODRIVE03 Drive Controllers ECODRIVE03 DKC**.040, DKC**.100, DKC**.200 4-17
Storable energy in the bus
Note: The higher the connection voltage the lower the energy that
can be stored in the DC bus as the dierential voltage
between bleeder threshold and DC bus voltage (threshold
value of connecting voltage) decreases.
0
10
20
30
40
50
60
70
80
90
0 100 200 300 400 500 600
Line input voltage U
N1
in V
W
ZW
in Ws

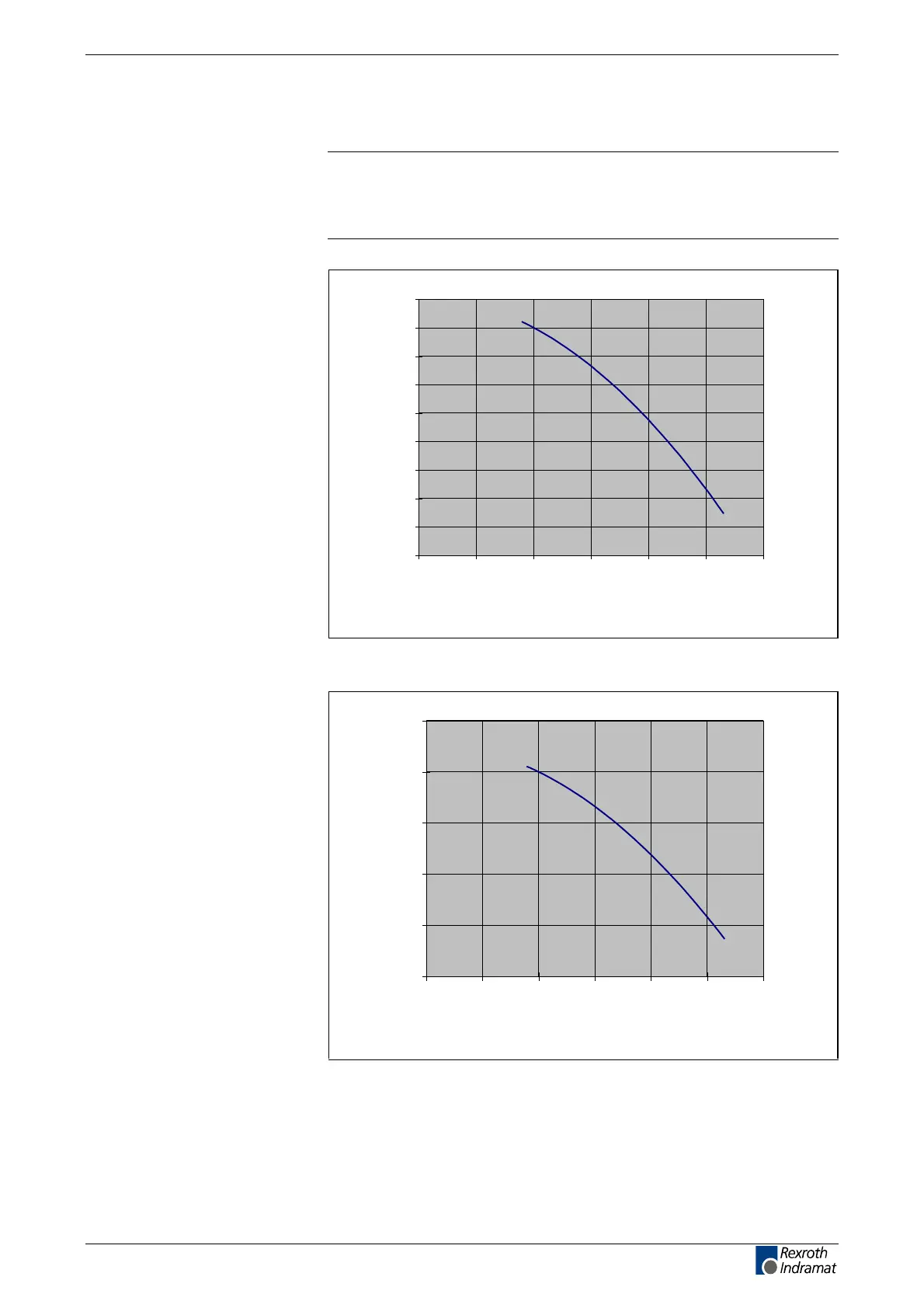

Fig. 4-17: Storable energy in the bus DKC**.3-040-7-FW
0
50
100
150
200
250
0 100 200 300 400 500 600
Line input voltage U
N1
in V
W
ZW
in Ws
Fig. 4-18: Storable energy in the bus DKC**.3-100-7-FW
DKC**.3-040-7-FW
DKC**.3-100-7-FW
