12.2 Using Cooling Units in the Control Cabinet
The controller may only be operated if the ambient temperature does not
exceed 45 °C. Otherwise temperature must be reduced and it may be
necessary to use a cooling unit.
CAUTION
Possible damage to controller
Endangers the operating safety of the machine
 Note the following information!
Under normal conditions, if a cooling unit is used, then water
condensation occurs. Therefore, note the following:
• Always arrange cooling so that water condensation cannot drip onto
electronic units within the cabinet.
• Place the unit so that the cooling unit blower cannot spray
condensation onto electronic components.
Eb0001f1.fh7
incorrect
correct
warm cold
Cooling system
Cabinet
warm cold
Air duct
electronic
equipment
electronic
equipment
Cabinet
Cooling system

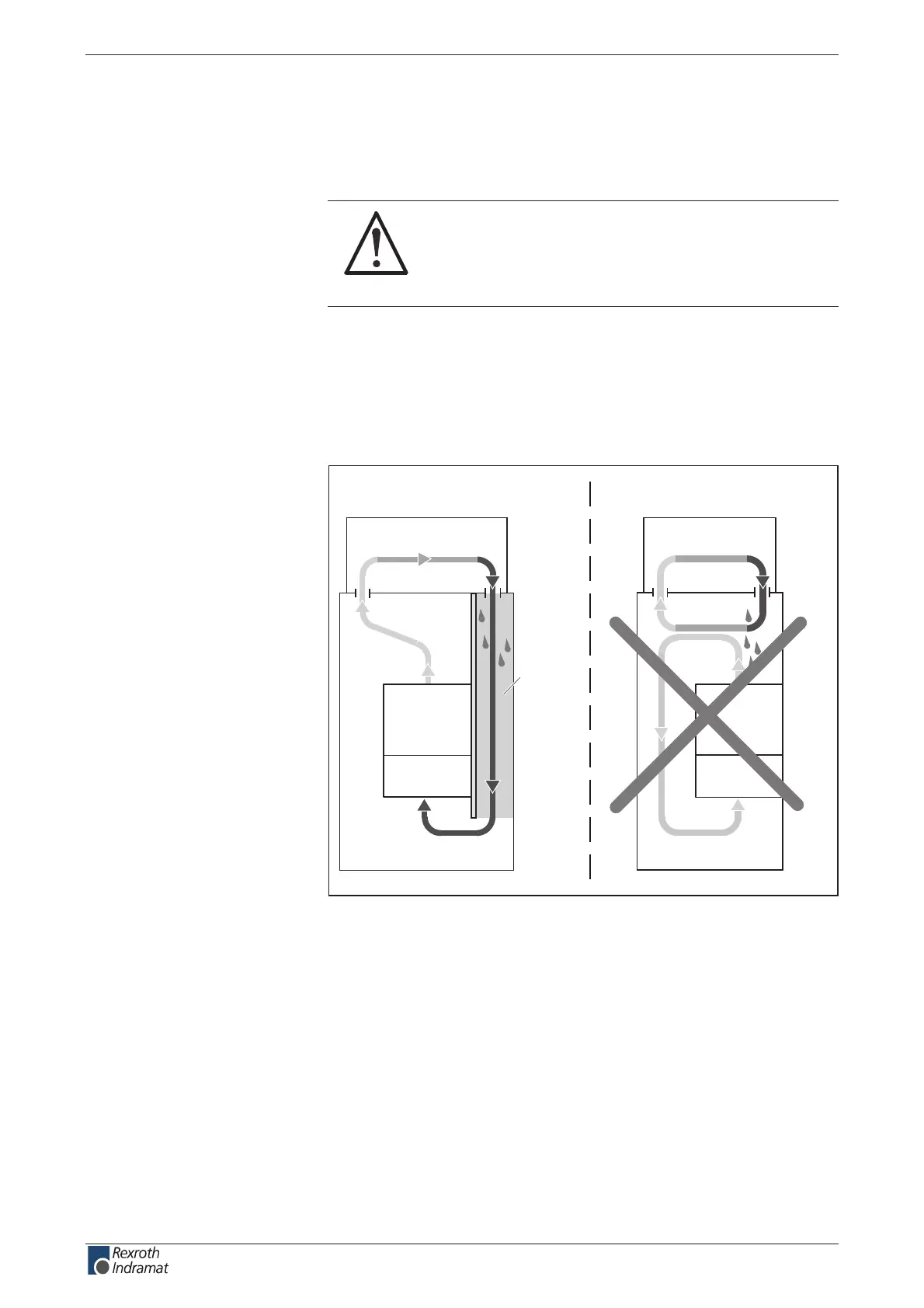

Fig. 12-19: Arranging cooling unit on cabinet
Avoiding dripping or spraying
water
