Rexroth Indramat ECODRIVE03 Series User Manual

tnemhcattAsrellortnoC evirD 30EVIRDOCE 16-19
Power connection

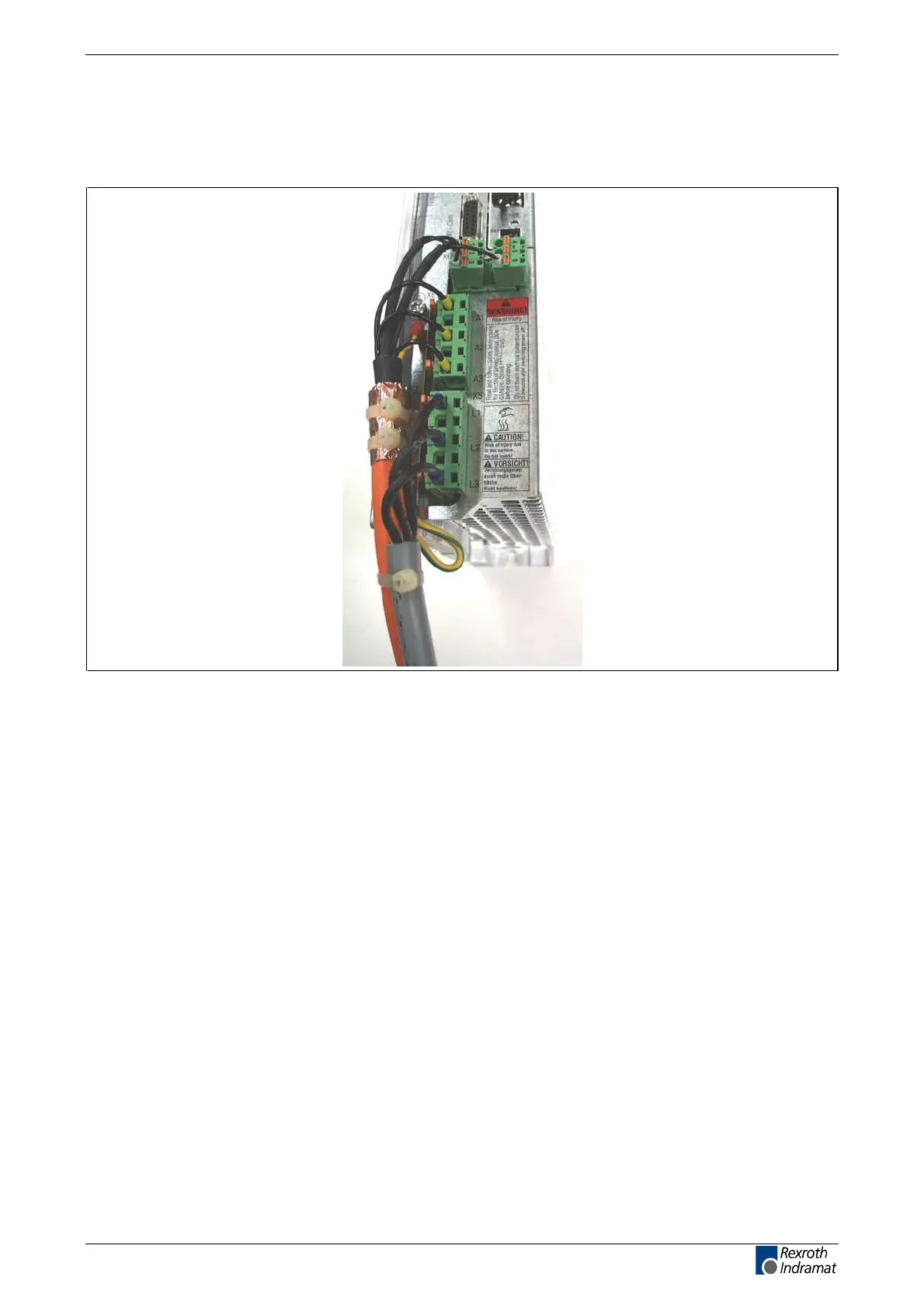

Connection of motor and mains cable DKC**.3-016-7
Fig. 16-27: Connection of motor and mains cable
• Fasten the motor cable with two cable ties to the shield connection at
the heatsink.
• Fasten the motor cable and the mains cable in the control cabinet as
near as possible to the drive controller, because the two cable ties do
not serve as strain relief.
• Always place the direct connectors for motor and mains connection
on the drive controller in such a way that the barbs lock into place.
