16-18 srellortnoC evirD 30EVIRDOCEtnemhcattA

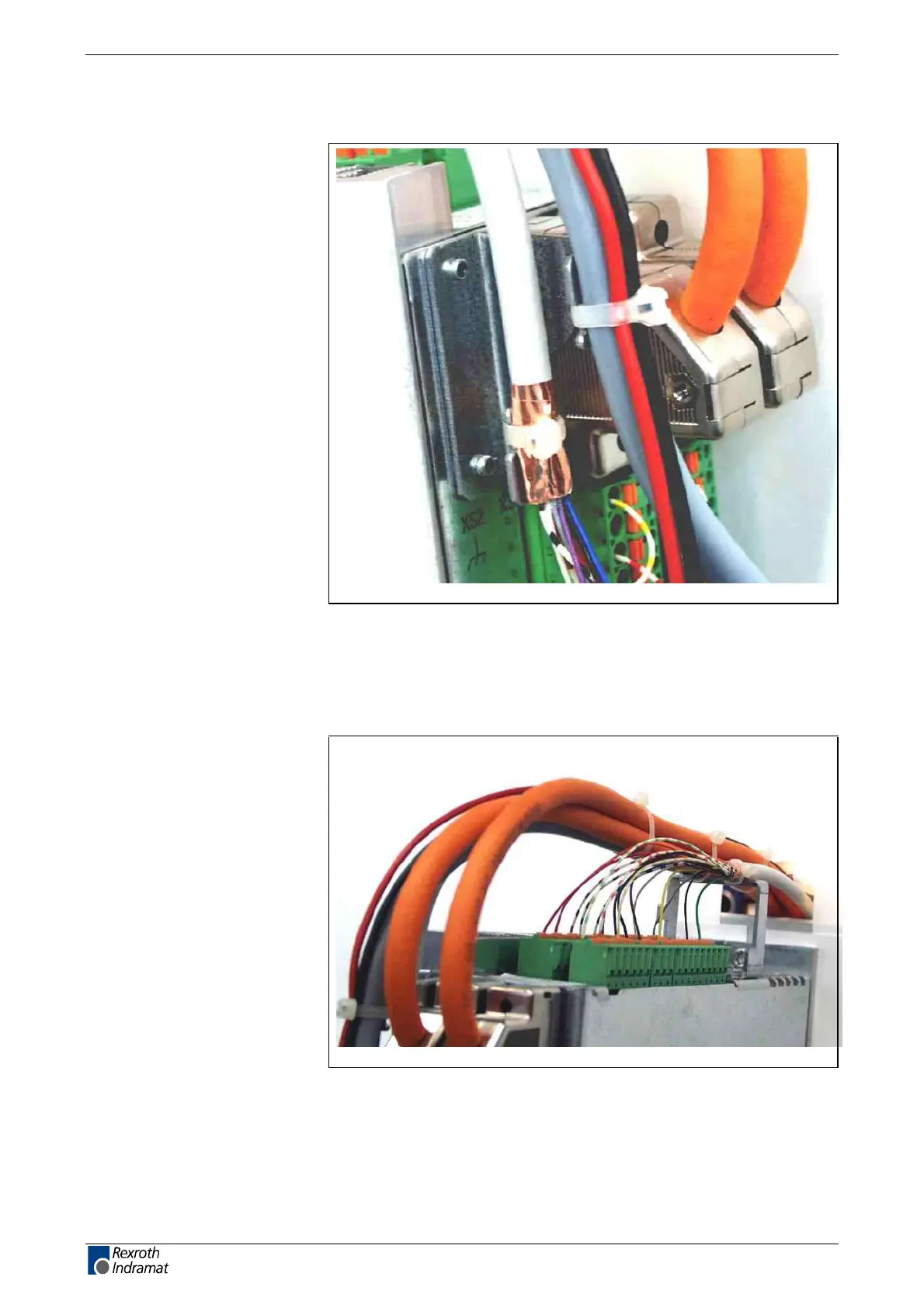

Detail view X4, X8 and XS2 with cable shield connection
Fig. 16-25: Detail view X4, X8, XS2
Detail view X9, X10, X11 and XS3 with cable shield
connection
Fig. 16-26: Detail view X9, X10, X11, XS3
