ECODRIVE03 Drive Controllers Replacing or Exchanging Drive Components 15-7
15.3 Replacing Firmware
(DKC**.3-040/100/200-7-FW)
Replacing the Parameter Module
• Secure parameters (DriveTop)
• Switch drive controller o
• Remove programming module
• Open the lock on the back
Push locking plate
inside to open
Ap5145f1.fh7

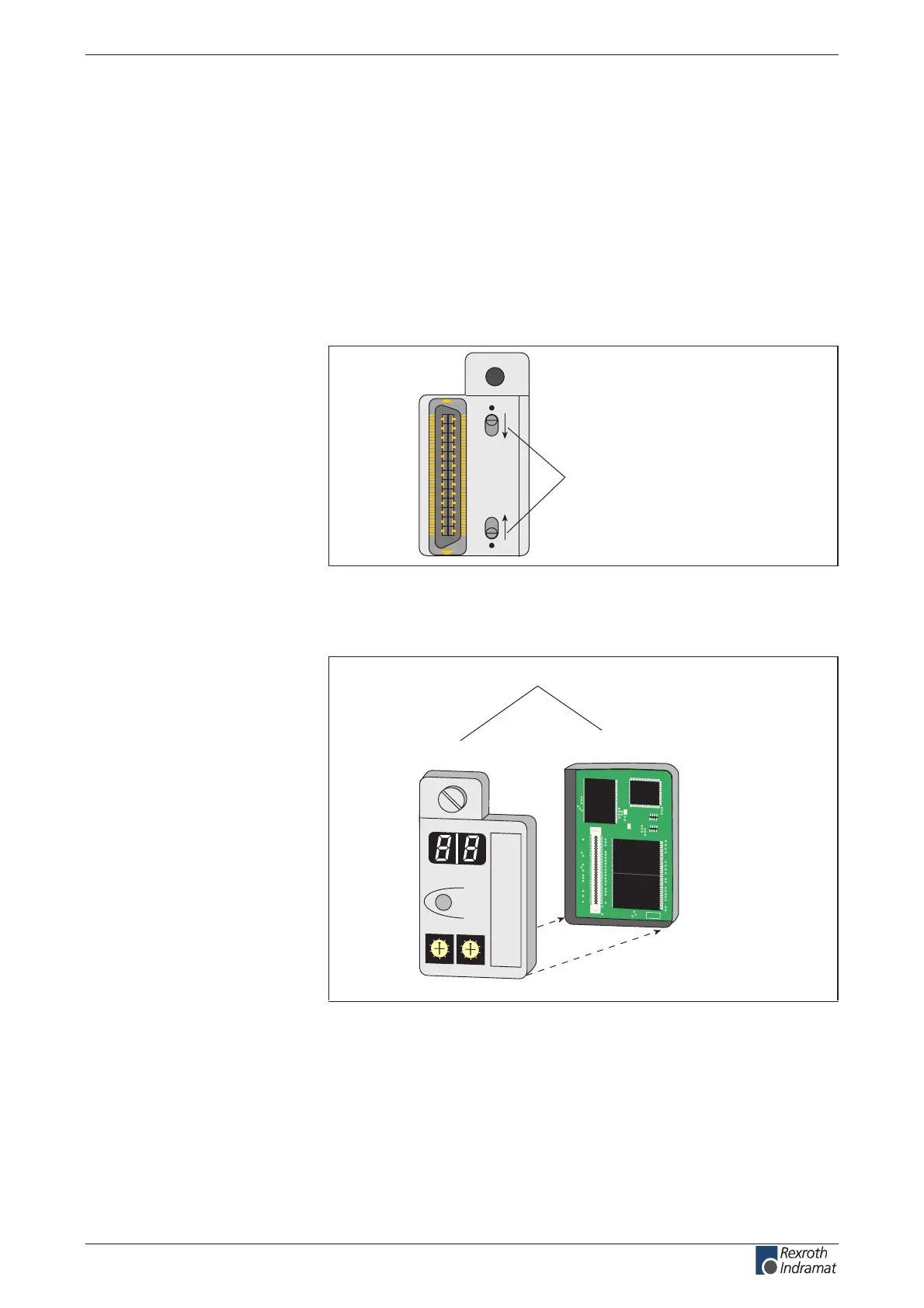

Fig. 15-4: Locking the programming module
• Open the programming module
Ap5146f1.fh7
Programming module
Firmware module
Parameter module
Barcode
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
H1
S1
S3 S2
Barcode
H1
S1
S3 S2
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
ISSI
IS61C6416-20T
C2110900 9728
splSI2032
110LT48
H813A08
ESF2
SDS
Fig. 15-5: Programming module
• Connect new parameter module and old rmware module
• Close lock (switch outward)
• Insert programming module
• Switch drive controller on
• Load parameters (DriveTop)
