610-3.**CKD 30EVIRDOCEsrellortnoC evirD 30EVIRDOCE 5-23
X2, Serial Interface
Note: Serial interfaces (RS232) are generally used for programming,
parameterization and diagnoses upon commission and during
service.
Technical description of connector
Ap5265f1.FH7
1
8
9
15

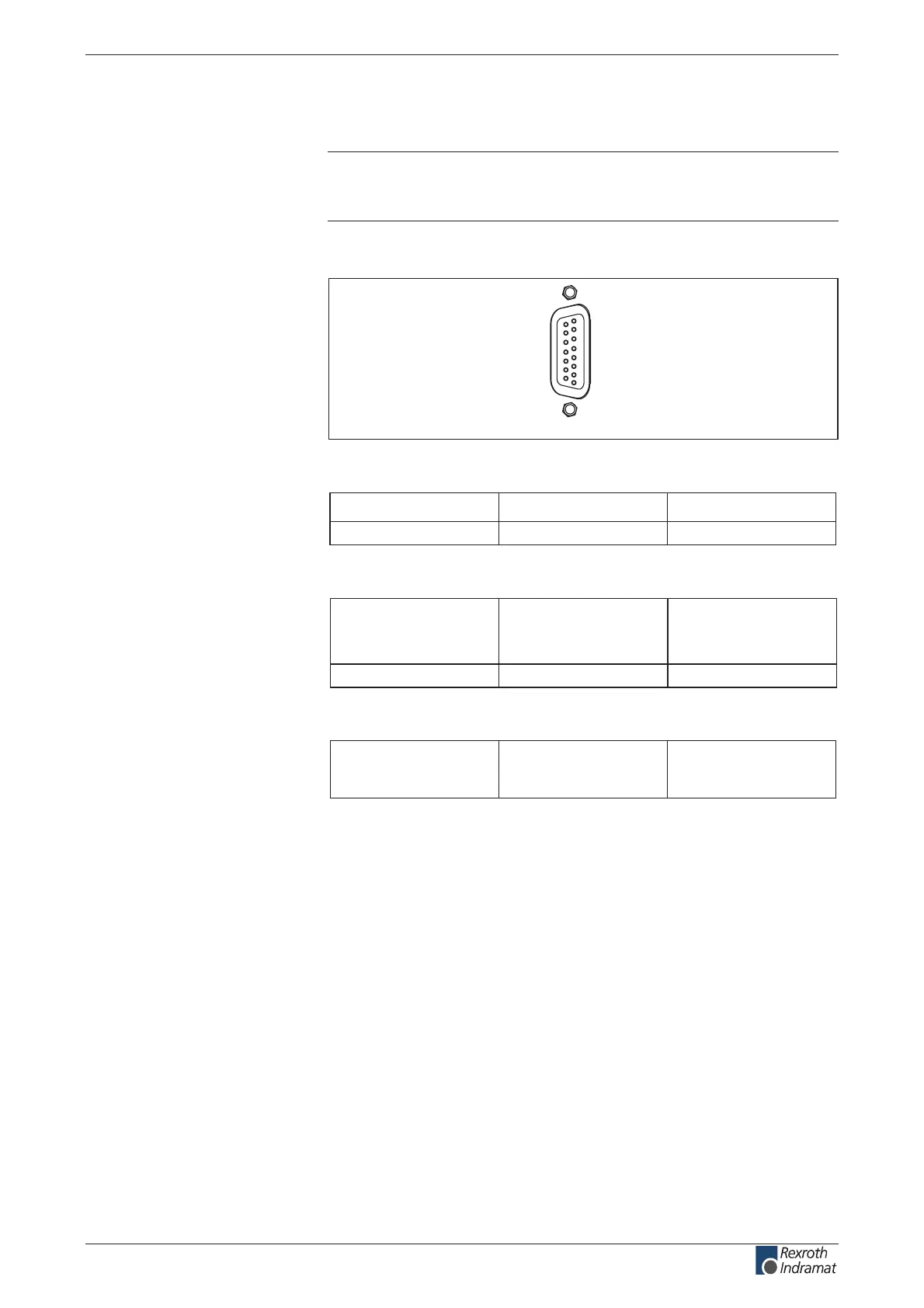

Fig. 5-30: Connector X2
Type No. of pins Design
D-SUB 15 Bushings on unit
Fig. 5-31: Design
Cross section
single wire
[mm ²]
Cross section
multi core wire
[mm ²]
Cross section
in AWG
gauge no.:
-- 0.25-0.5 --
Fig. 5-32: Connection cross section
RS232 pin 2, 3
against each other
against 0 V
present
present
Fig. 5-33: Short circuit protection
Illustration:
Design:
Connection cross section:
Short circuit protection:
