Rexroth Indramat ECODRIVE03 Series User Manual

ECODRIVE03 Drive Controllers ECODRIVE03 DKC**.040, DKC**.100, DKC**.200 4-119
DKC 06.3-***-7-FW – DeviceNet Interface

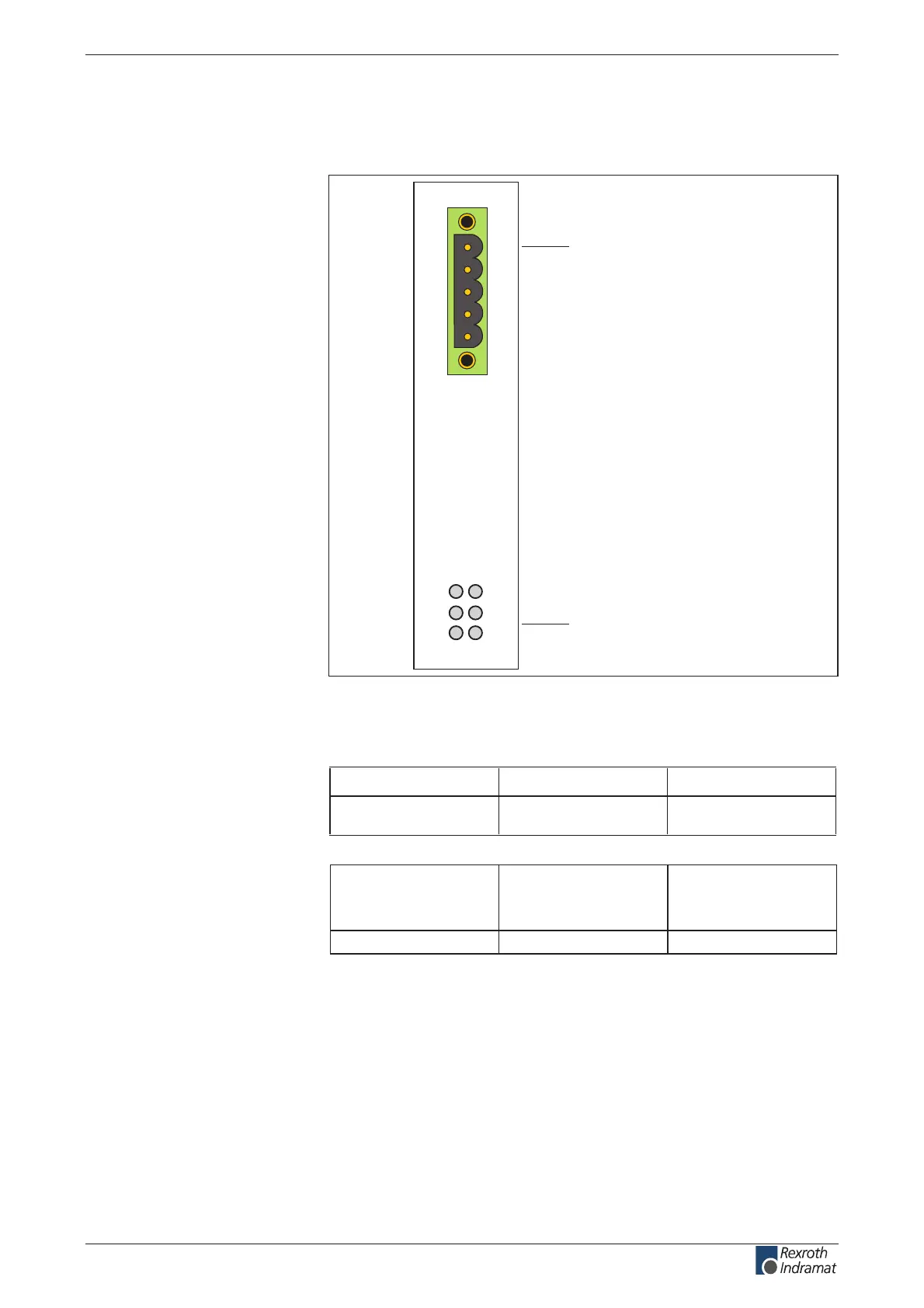

View of command communication interface
FA5069F1.FH7
H65
H63
H61
H64
H62
H60
diagnostic display
X60:
DeviceNet-Interface
(male, 5 pins)
X60
5
1
Fig. 4-204: View of command communication interface
Technical description of connector
Type No. of pins Design
COMBICON 5 Bushing on the
connector
Fig. 4-205: Design
Cross sections
single wire
[mm ²]
Cross sections
multi core wire
[mm ²]
Cross sections
in AWG
gauge No.:
0.2-2.5 0.2-1.5 24-16
Fig. 4-206: Connection cross sections
Design:
Connection cross sections:
