ECODRIVE03 Drive Controllers ECODRIVE03 Auxiliary Bleeder Module BZM01.3 6-1
6 ECODRIVE03 Auxiliary Bleeder Module BZM01.3
6.1 General
The Auxiliary Bleeder Module BZM01.3 is advantageously utilized to:
• To increase the allowed continuous regenerative power
• To increase the allowed peak regenerative power
• For internal DC bus dynamic brake (ZKS) with DKC**.3-040-7-FW
6.2 Technical data
Dimensions

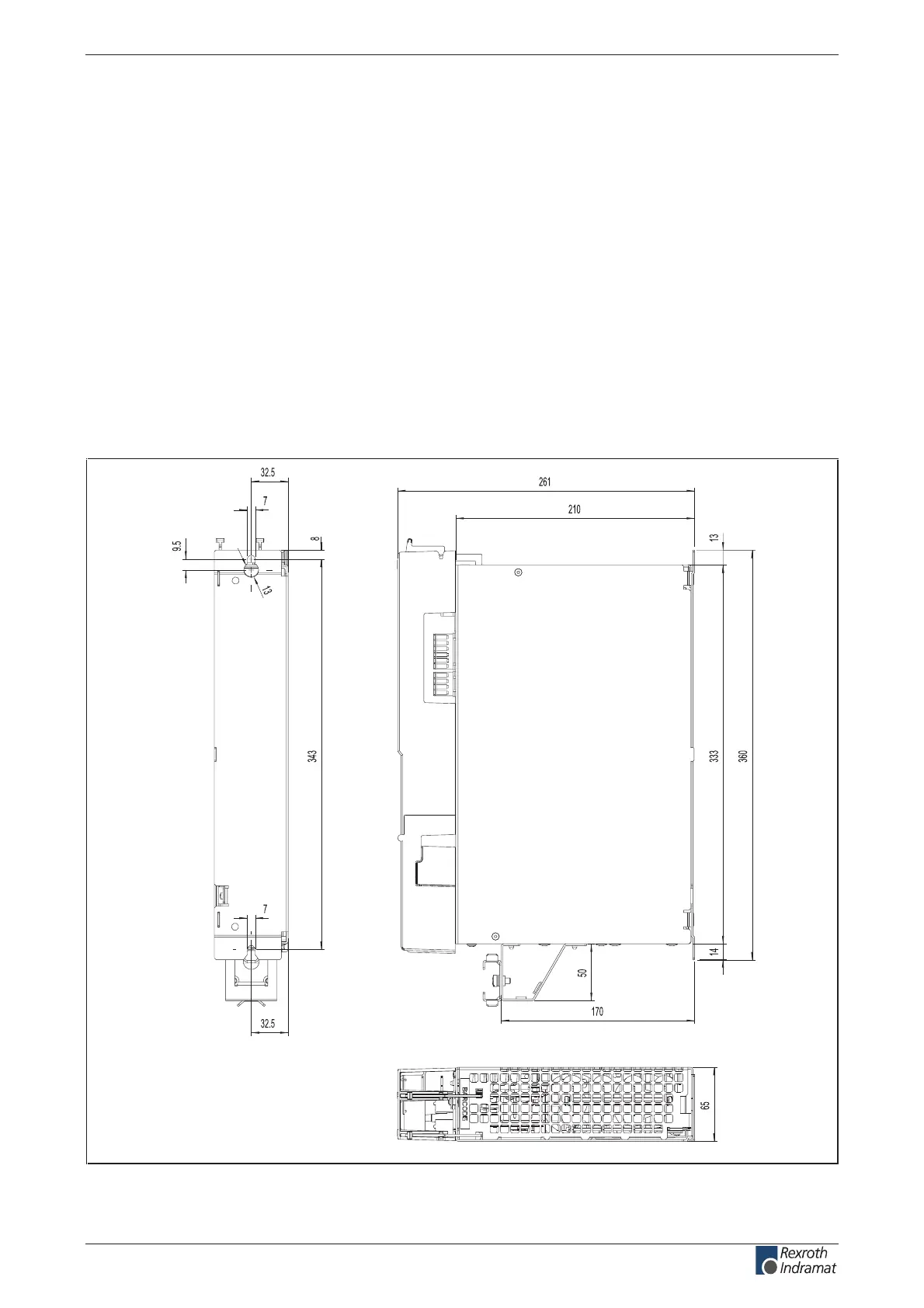

Dimensions Auxiliary Bleeder Module BZM01.3
MB5005F1.FH7
Fig. 6-1: Dimensions Auxiliary Bleeder Module BZM01.3
Also see page 12-1: "Constructing the Control Cabinet".
