Rexroth Indramat ECODRIVE03 Series User Manual

tenibaC lortnoC eht gnitcurtsnoCsrellortnoC evirD 30EVIRDOCE 12-13
Power-dependent arrangement
DKC**.3
-200
AP5418f1.fh7
DKC**.3
DKC**.3
-040-100
DKC**.3DKC**.3
-040
-040
high power
low power
DKC**.3
-100
supply feed

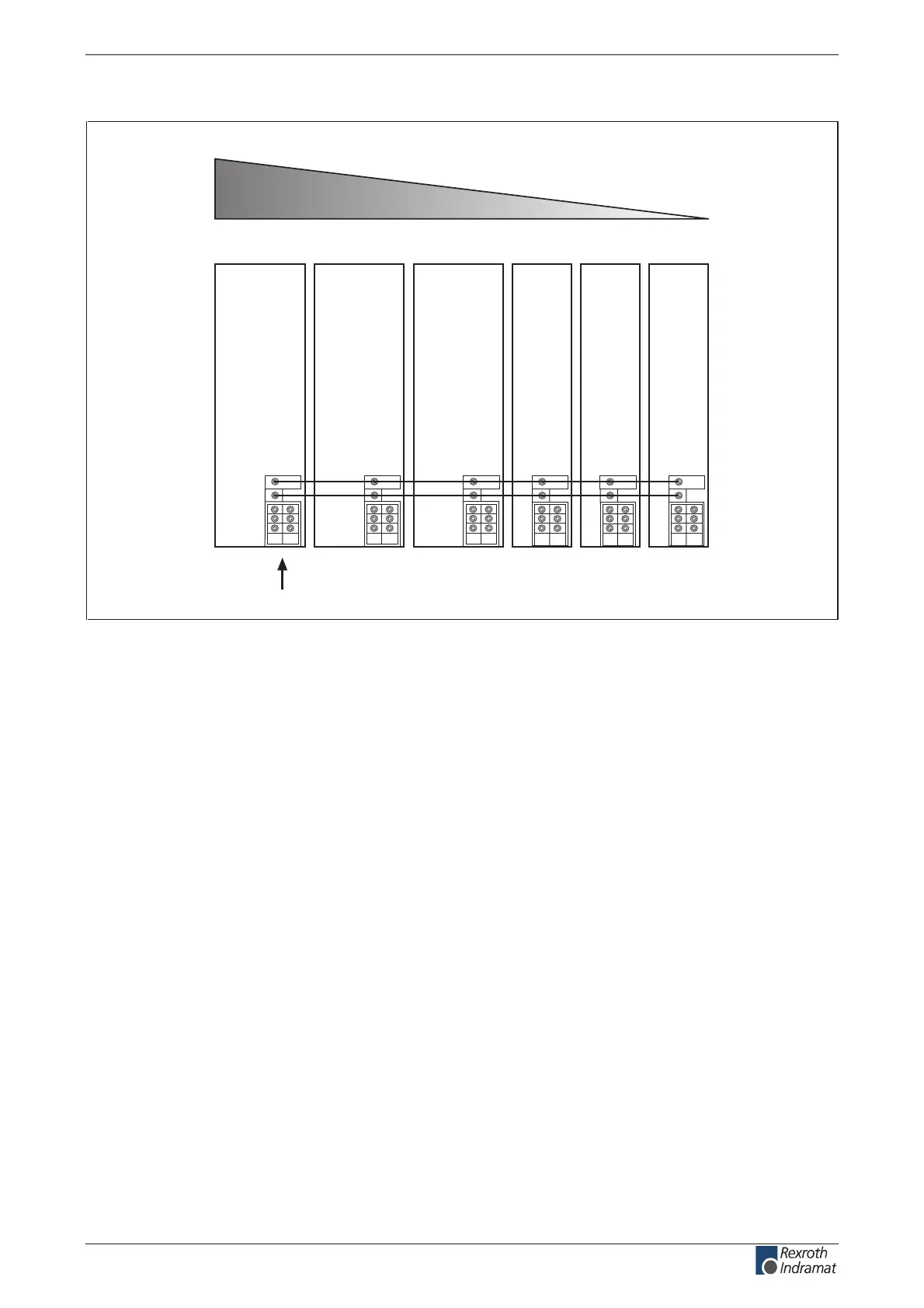

Fig. 12-18: Example of arrangement of a "Central feed"
• For mounting details please see page 4-21 onward.
• Arrange auxiliary capacitance module CZM next to drive with large
DC bus continuous power.
• Arrange auxiliary braking resistor module BZM next to drive with large
feedback power.
See also page 16-7: "Control Cabinet Construction with
Recommendations for EMC and Cooling".
