Rexroth Indramat ECODRIVE03 Series User Manual

610-3.**CKD 30EVIRDOCEsrellortnoC evirD 30EVIRDOCE 5-35

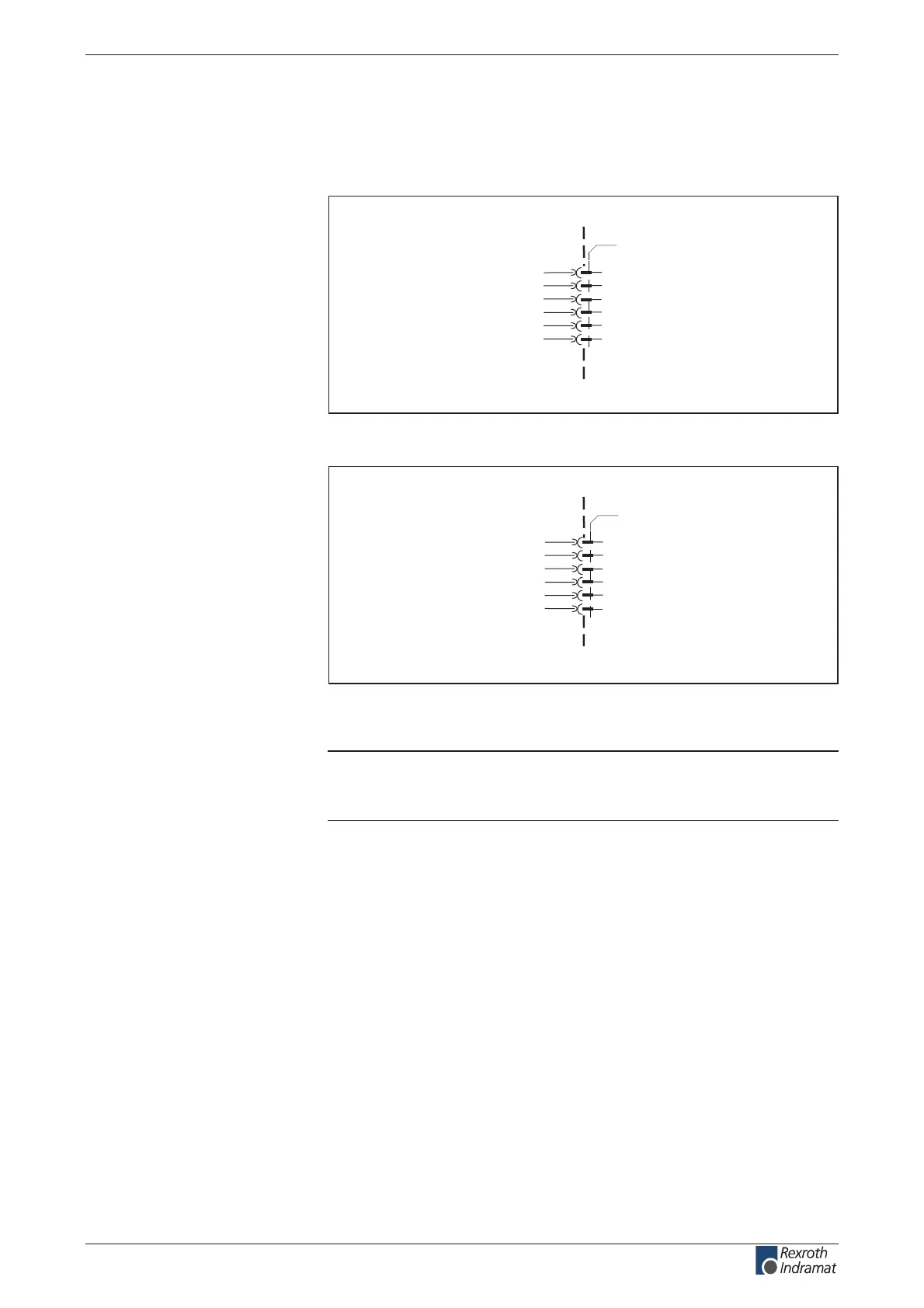

Mains connections
The mains connector serves as the connection of the drive controller with
the power supply.
AP5399f1.FH7
L1
L2
L3
L1
N
n.c.
device-external device-internal
X5
Fig. 5-57: Single-phase mains connection
AP5400f1.FH7
X5
L1
L2
L3
L1
L2
L3
device-external device-internal
Fig. 5-58: Three-phase mains connection
Note: Mains connections should not be daisy-chained between the
units (intermediate connectors for the supply source should be
used).
Illustration of the correctly connected mains cable: See page 16-19
Connection of motor and mains cable DKC**.3-016-7".
See also page 11-1 "Mains Connections"
Single-phase mains connection:
Three-phase mains connection:
