Factor F via P
ZWD
for DKC**.3-200-7 without auxiliary components
1,4
1,5
1,6
1,7
1,8
1,9
2,0
2,1
2,2
2,3
2,4
0 2 4 6 8 10 12
DC bus continuous power P
ZWD
in kW
Factor F
Factor F for
3*AC(200...480)V

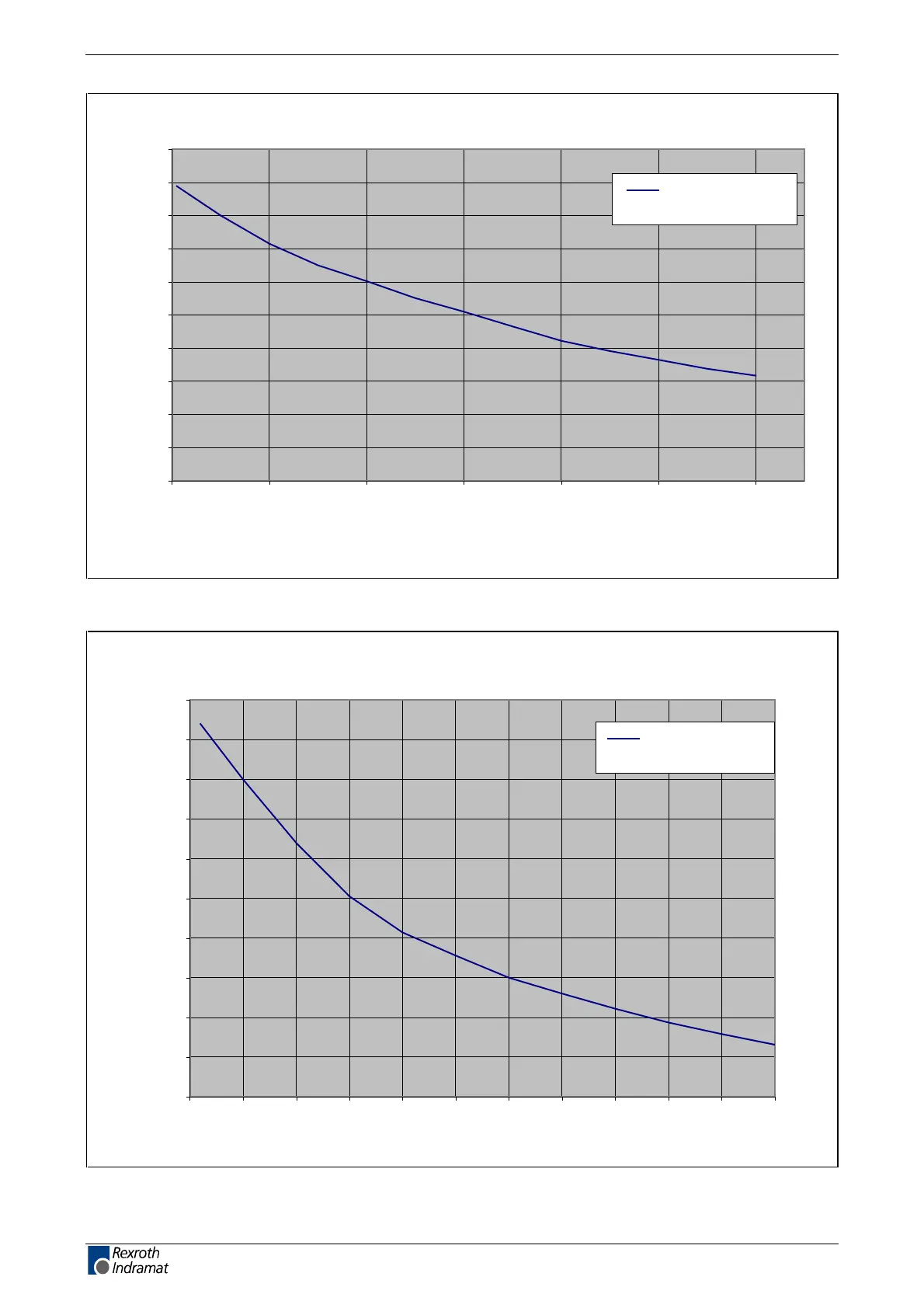

Fig. 11-10: Connected load factor for DKC**.3-200-7
Factor F via P
ZWD
for DKC**.3-200-7 with CZM01.3
1,4
1,5
1,6
1,7
1,8
1,9
2,0
2,1
2,2
2,3
2,4
0 2 468 10 12 14 16 18 20 22
DC bus continuous power P
ZWD
in kW
Factor F
Factor F for
3*AC(200...480)V
Fig. 11-11: Connected load factor for DKC**.3-200-7 with CZM01.3
