SP Specification
SP1-001-001 (All Trays) 0 ± 2 mm
SP1-001-002 (By-pass) 0 ± 2 mm
SP1-001-003 (Duplex) 0 ± 4 mm
5. Adjust the leading edge registration (SP1-001).
6. Measure the distance between the side edge of the image area and the side edge of the paper [B].
SP Specification
SP1-002-001 (1st tray) 0 ± 2 mm
SP1-002-002 (2nd tray) 0 ± 2 mm
SP1-002-005 (By-pass) 0 ± 4 mm
SP1-002-006 (Duplex) 0 ± 4 mm
7. Adjust the side-to-side registration (SP1-002).
8. Specify "0" (zero) in SP5-902-001 after finishing the adjustment procedure.
Adjusting Blank Margin
Use the Trimming Area Pattern (SP5-902-001 > 10) for this adjustment.
1. Print out the test pattern.

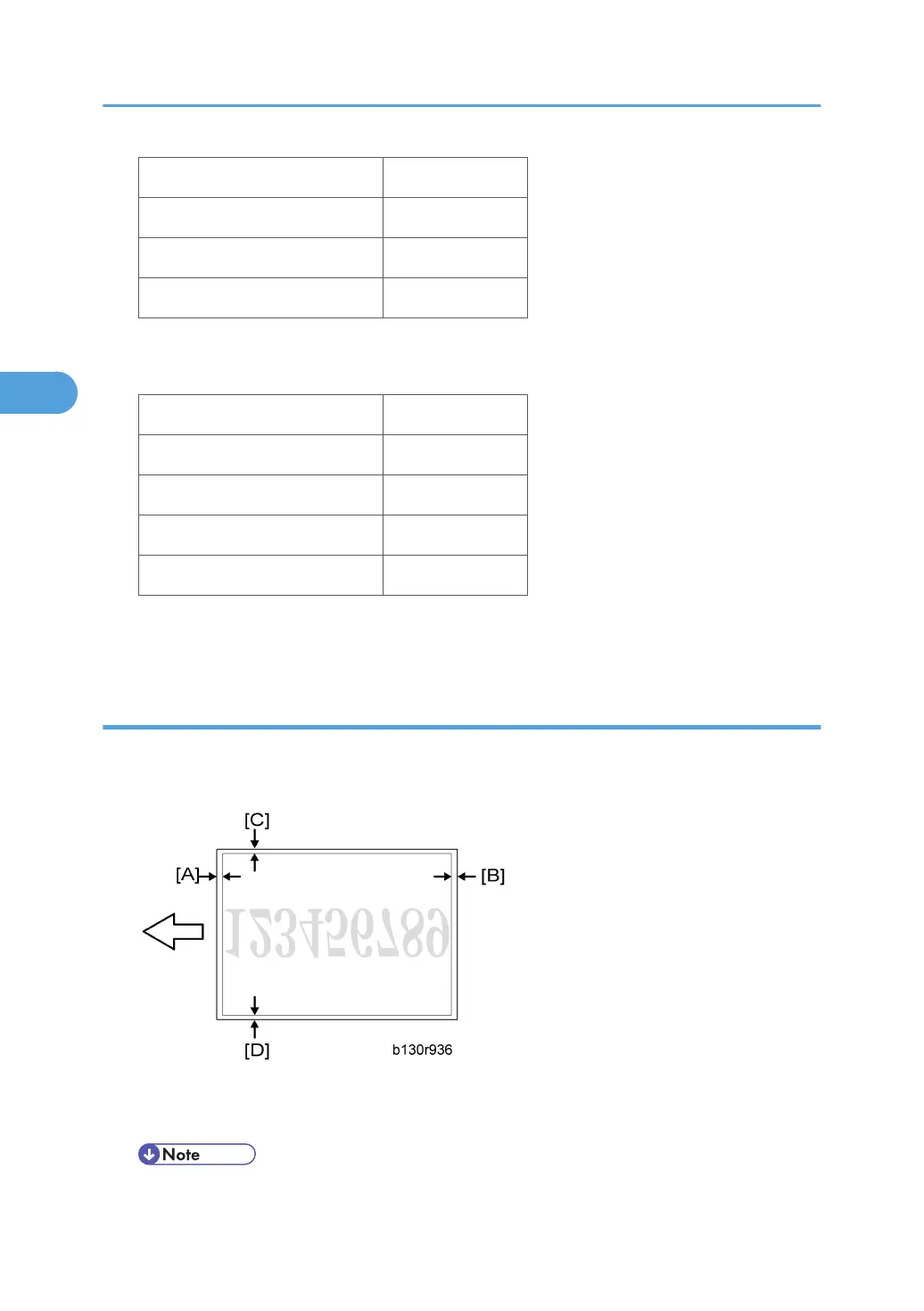

2. Measure the distance between the four edges of the image area and the four edges of the paper [A]
[B][C][D].
• The diagram shows the paper on the copy tray. Note that the paper is output with the face down.
3. Replacement and Adjustment
100
