ARDF
ARDF

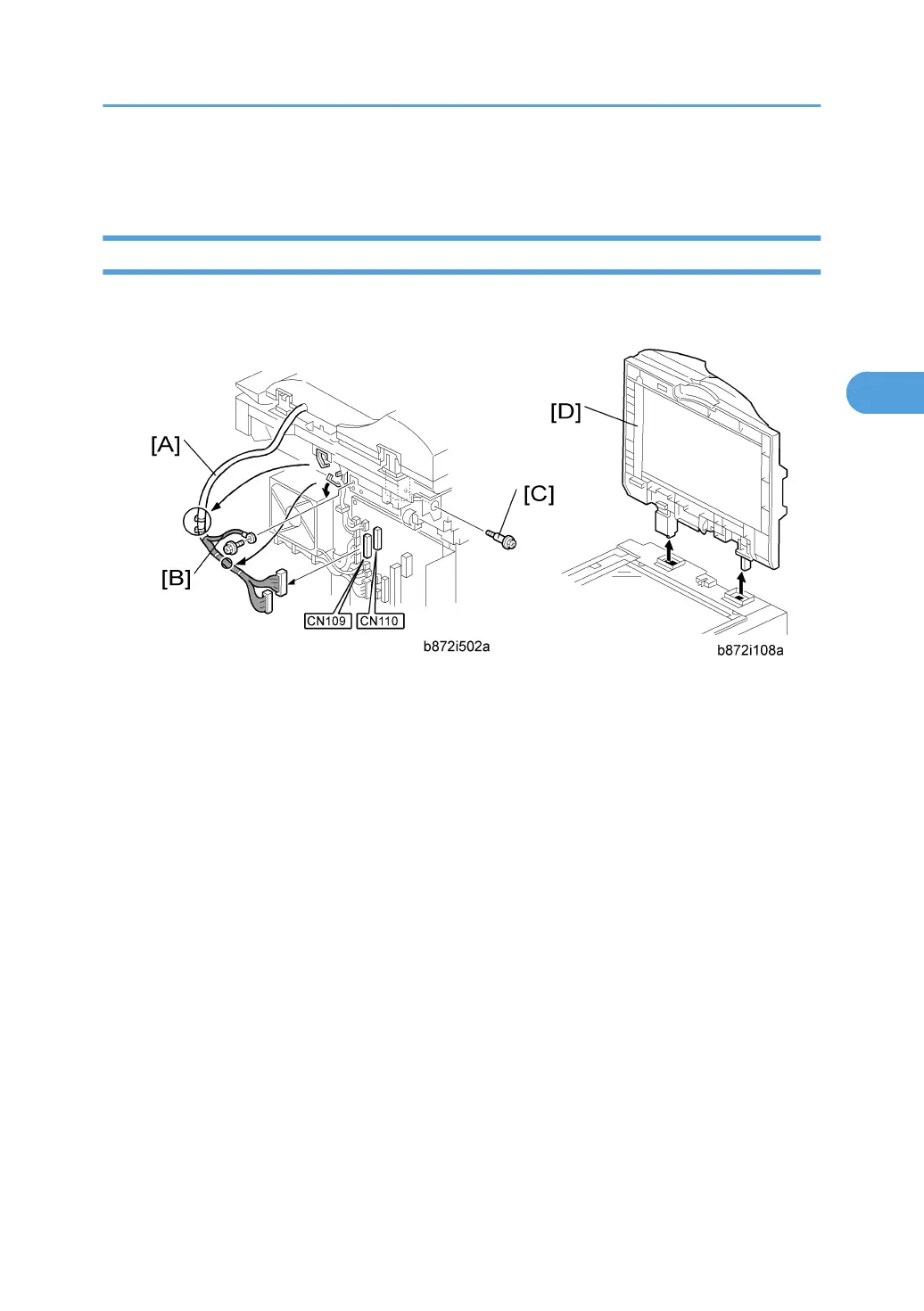

1. Rear cover (* "Rear Cover")
2. Remove the DF interface cables [A] ( x 2, hook x 2).
3. Remove the ground cable [B] ( x 1).
4. Remove the stud screw [C].
5. Remove the ARDF [D].
ARDF
91
3
