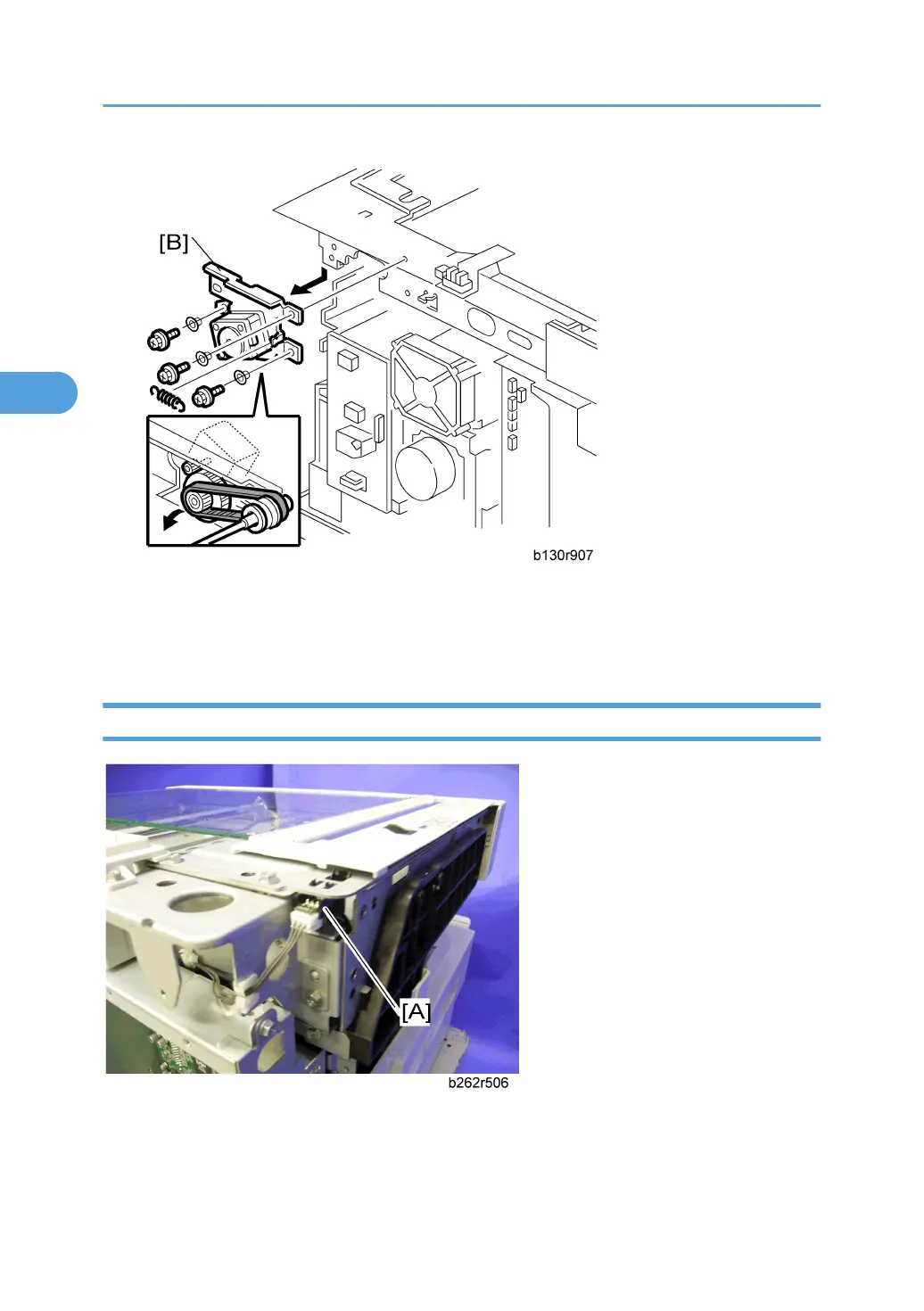

4. Scanner motor [B] ( × 3, 1 spring, 3 screw holders, × 1)
Reinstalling
When reinstalling, fasten the screws loosely, set the spring in place, and tighten up the screws.
Scanner HP Sensor
1. Rear cover (* "Rear Cover")
2. Front left cover (* "Operation Panel and Upper Covers")
3. Scale plate (* "Scale Plate")
