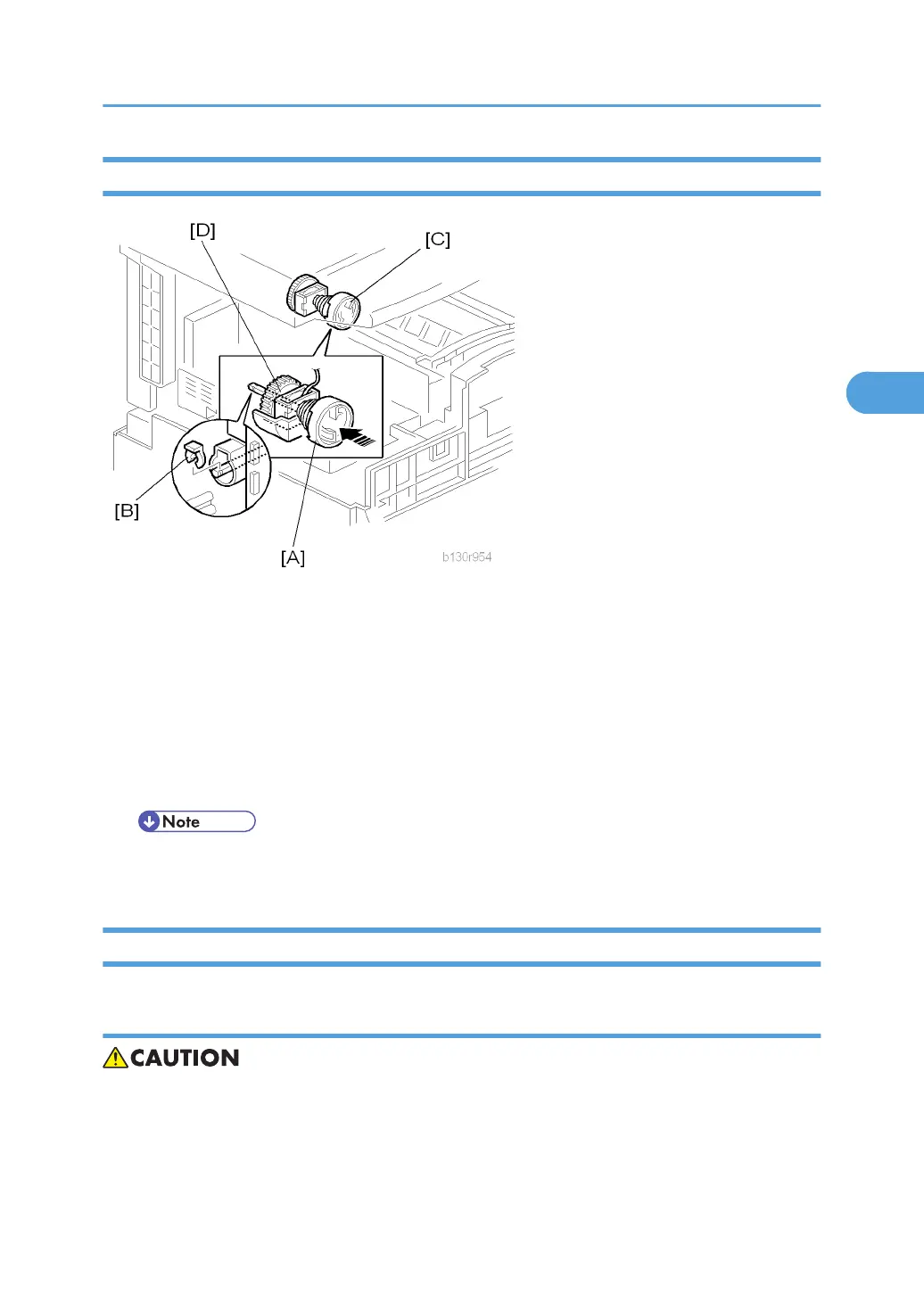

Toner Supply Clutch
1. Toner bottle holder
2. Copy tray (* "Copy Tray")
3. Rear cover (* "Rear Cover")
4. Disconnect the connector on C19 on the BICU.
5. Push the clutch coupler [A] to the rear side, and remove the clip ring [B] from the back of the copier.
6. Coupler and spring [C]
7. Lift the toner supply clutch [D] and remove it.
• When removing, note how the wire goes through a clamp, and also note where it passes through
the rear of the machine.
FCU
Lithium Batteries
• Incorrect replacement of lithium battery(s) on the controller or on the fax unit poses risk of explosion.
Replace only with the same type or with an equivalent type recommended by the manufacturer.
Discard used batteries in accordance with the manufacturer’s instructions.
