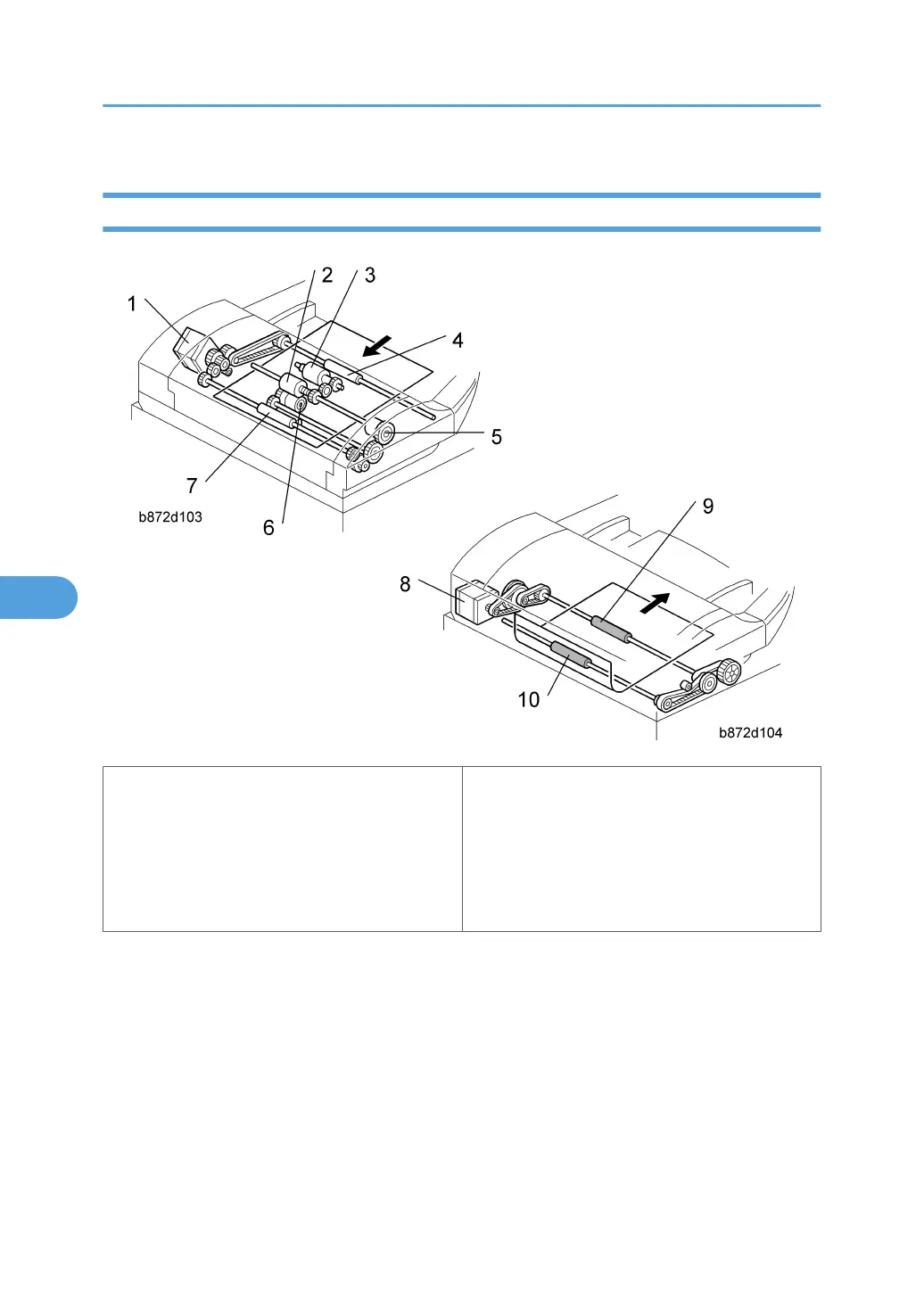

ARDF
1. DF Feed Motor
2. Feed Roller
3. Pick-up Roller
4. Inverter Roller
5. DF Feed Clutch
6. Separation Roller
7. Transport Roller
8. DF Transport Motor
9. Exit Roller
10. Registration Roller
DF Feed Motor: Drives the feed, separation, pick-up, and transport and inverter rollers.
DF Transport Motor: Drives the registration and exit rollers.
