Paper Feed Drive Mechanism
From Paper Tray

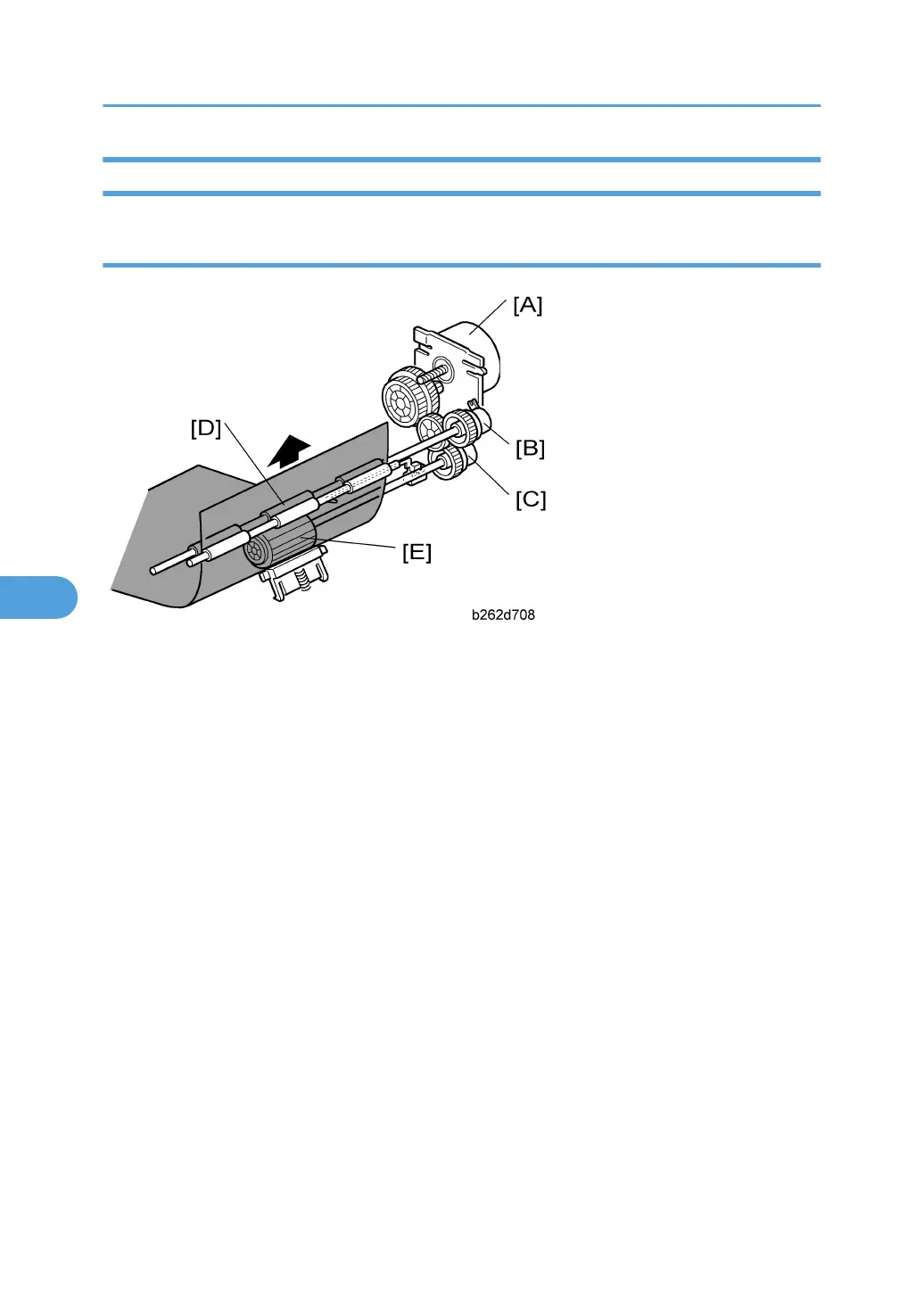

Main motor [A] drives gears on the registration clutch [B] and the paper feed clutch [C]. These clutches
transfer drive to the registration roller [D] and paper feed roller [E]. The BICU controls clutch timing based
on input from the registration sensor.
