25. Install optional units (if any).

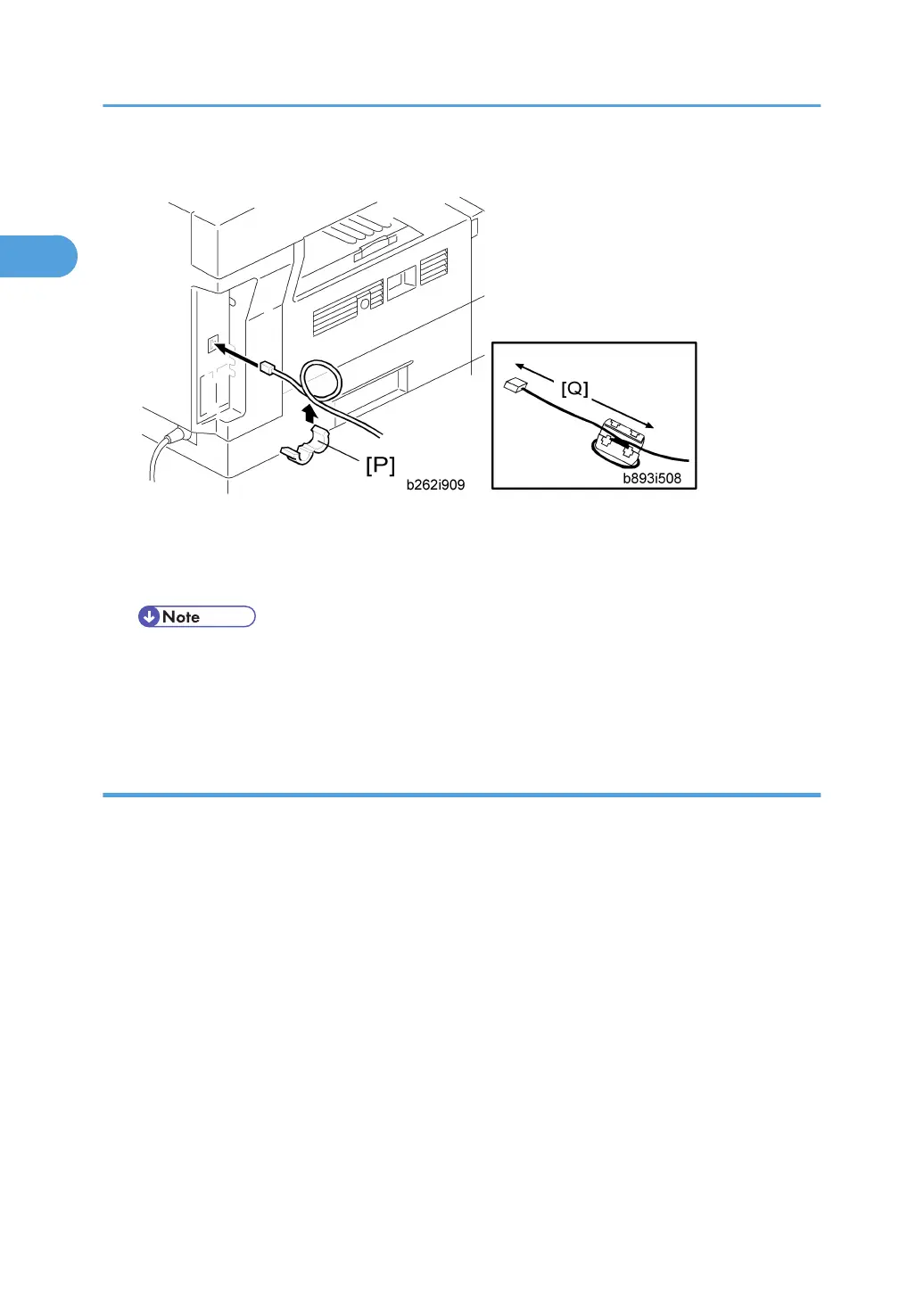

26. Attach the ferrite core [P] to the network cable when connecting the cable.
27. Attach the ferrite core to the telephone line as same manner step 26.
28. Connect the telephone line to the "LINE" jack.
• The end of the ferrite core must be about 10 cm (4") from the end [Q] of the cable.
29. Plug in the machine and turn on the main power switch.
30. Select the language used in the operation panel as necessary ( > Language).
Interface settings
For B284
1. Start the SP mode.
2. Select SP5-985-001 (NIC setting) and change the setting value to "0" (OFF).
3. Select SP5-985-002 (USB setting) and change the setting value to "0" (OFF).
4. Turn the main switch off and on.
For B288
1. Start the SP mode.
2. Select SP5-985-001 (NIC setting) and change the setting value to "1" (ON).
3. Select SP5-985-002 (USB setting) and change the setting value to "1" (ON).
4. Turn the main switch off and on.
1. Installation
20
