1. Fusing unit (* "Fusing Unit")

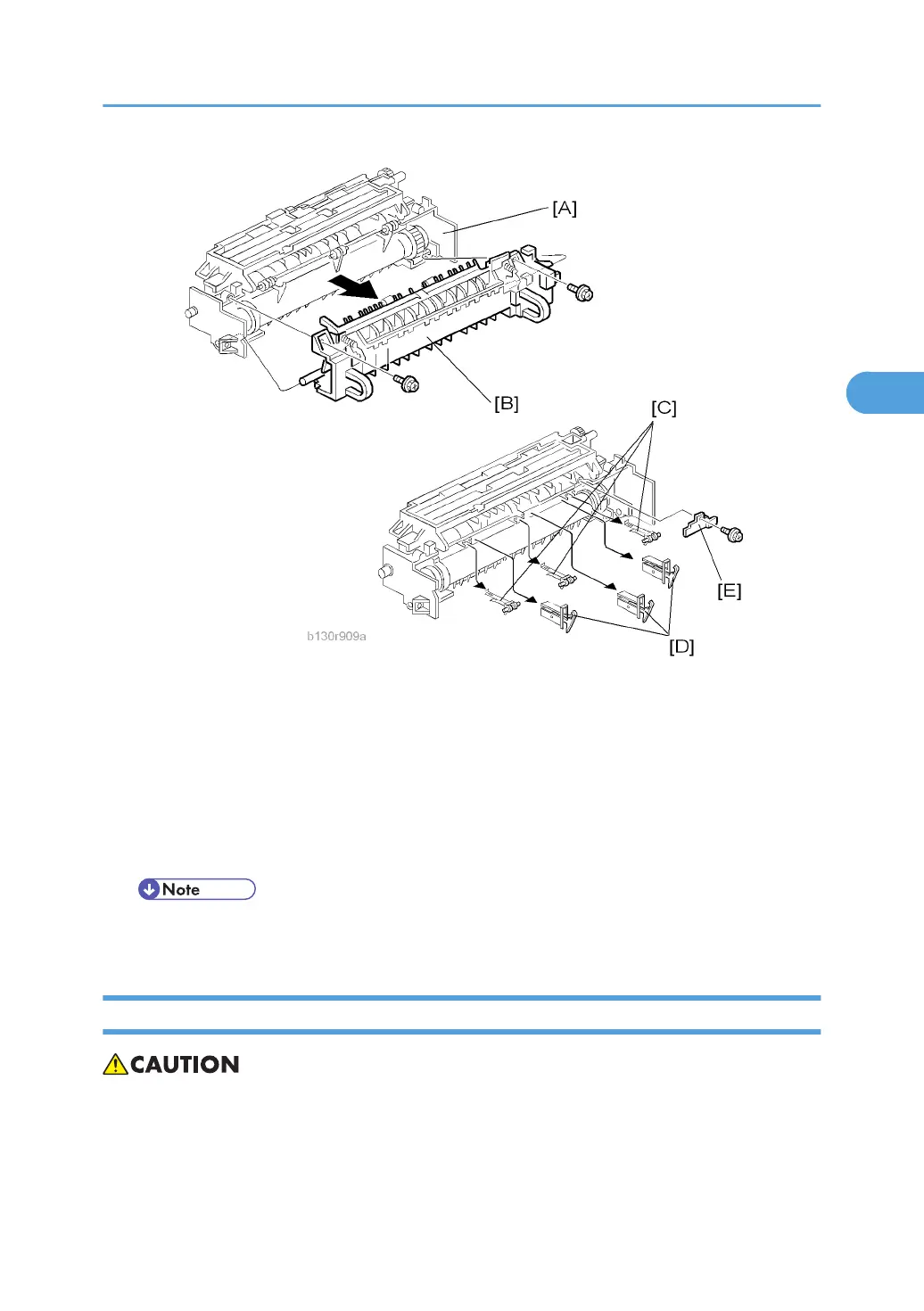

2. Separate the fusing unit into two sections: the hot roller section [A] and the pressure roller section [B]
( x 2).
After removing the screws, lower the pressure roller section about halfway and then slide it toward
the front side to detach it.
3. Support rollers [C]
4. Hot roller stripper pawls [D]
• Remove the spacer [E] ( x 1) if you are removing the hot roller assembly (* "Hot Roller &
Fusing Lamp").
Hot Roller and Fusing Lamp
• Do not touch the fusing lamp and rollers with your bare hands.
