Ricoh S-C3 F - DF Feed Motor

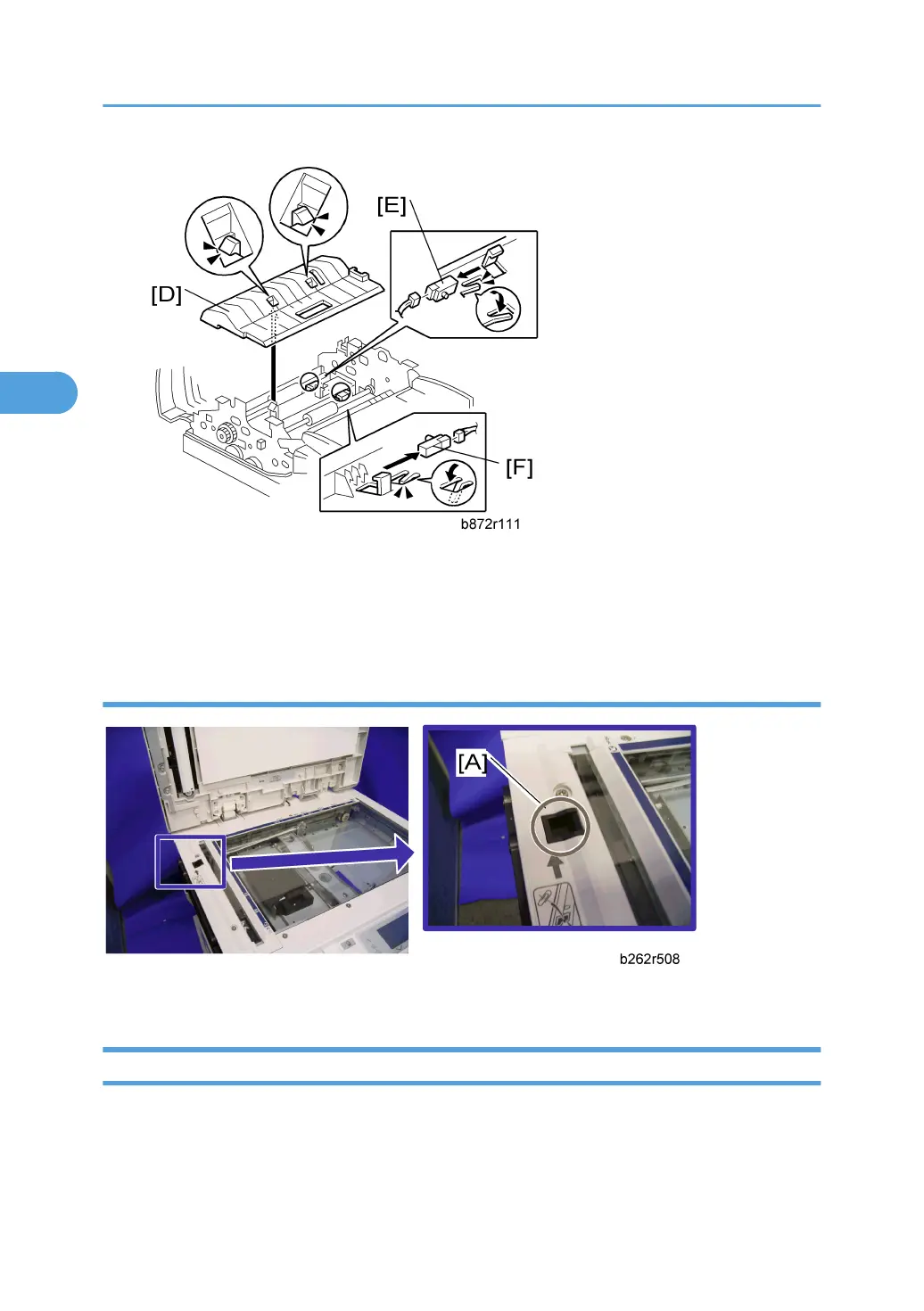

10. Inverter lower guide plate [D] (hook x 2)
11. DF registration sensor [E] ( x 1, hook)
12. DF exit sensor [F] ( x 1, hook)
DF Registration Sensor Reflector
Clean the SD registration sensor reflector [A] as necessary.
DF Feed Motor
1. DF rear cover (* "DF Rear Cover")
3. Replacement and Adjustment
96
3
