Ricoh S-C3 F - Exhaust Fan and Main Motor; Exhaust Fan

Exhaust Fan and Main Motor
Exhaust Fan
1. Rear cover (* "Rear Cover")

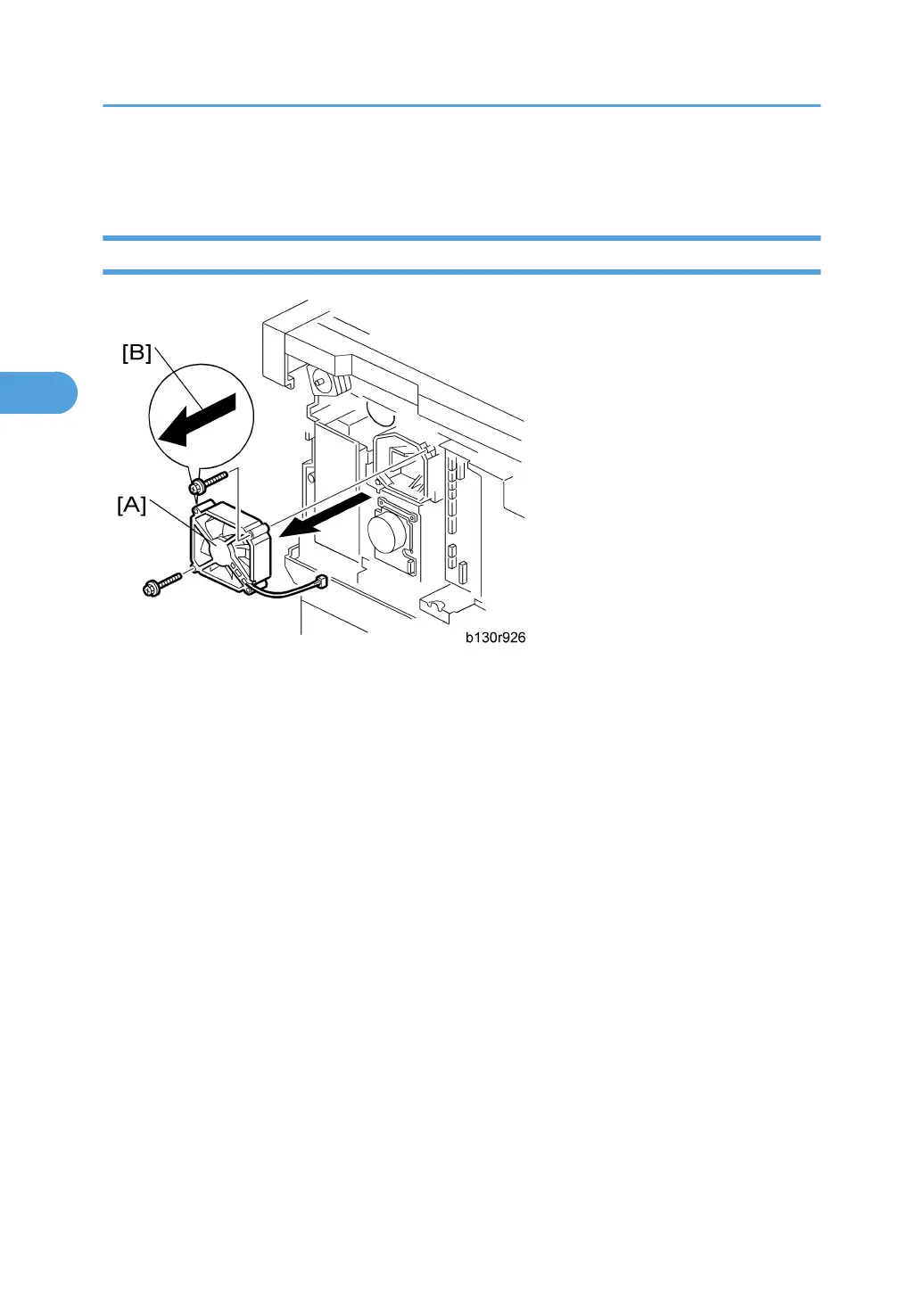

2. Exhaust fan [A] ( x 2,  x 1)
Reassembling
Make sure that the arrow [B] on the frame points to the rear side. The arrow indicates the direction of
airflow.
