Fusing
Fusing Unit
Before handling the fusing unit, make sure that the unit is cool enough. The fusing unit can be very hot.
1. Copy tray (* "Copy Tray")
2. Open the right door.
3. Connector cover [A] ( x 1)
When reinstalling, attach the ground wire.

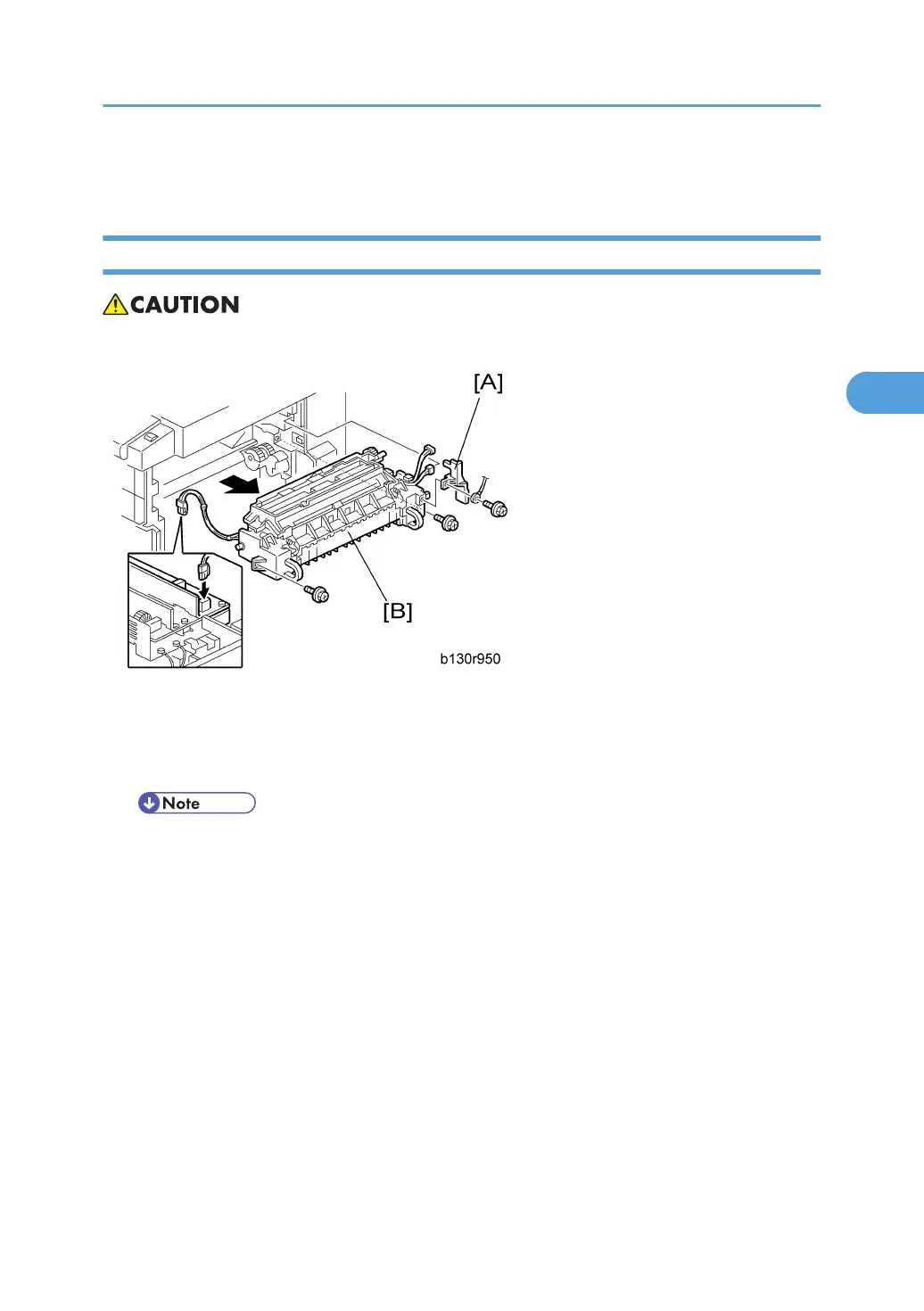

4. Fusing unit [B] ( x 2, x 4)
