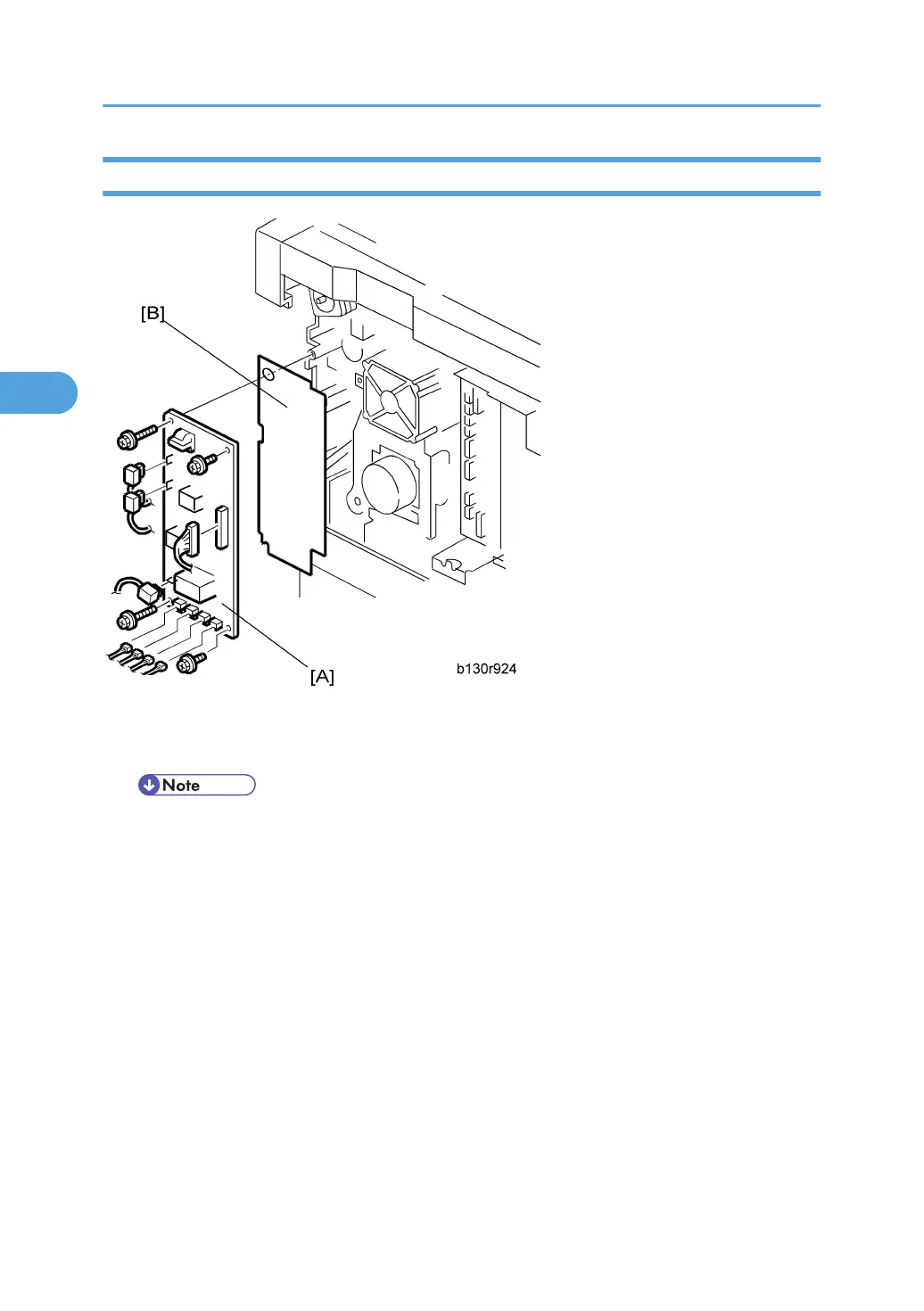

High-Voltage Power Supply Board
1.
Rear cover (
*
"Rear Cover")
2.
High-voltage power supply board [A] (all
,
x 4)
•
Remove the insulating sheet [B] if you are going to remove the contact-release solenoid (
*
"Contact-Release Solenoid") or the gear cover (
*
"Paper Feed and Registration Clutches").
3. Replacement and Adjustment
84
3
84
