Drum Cleaning and Toner Recycling

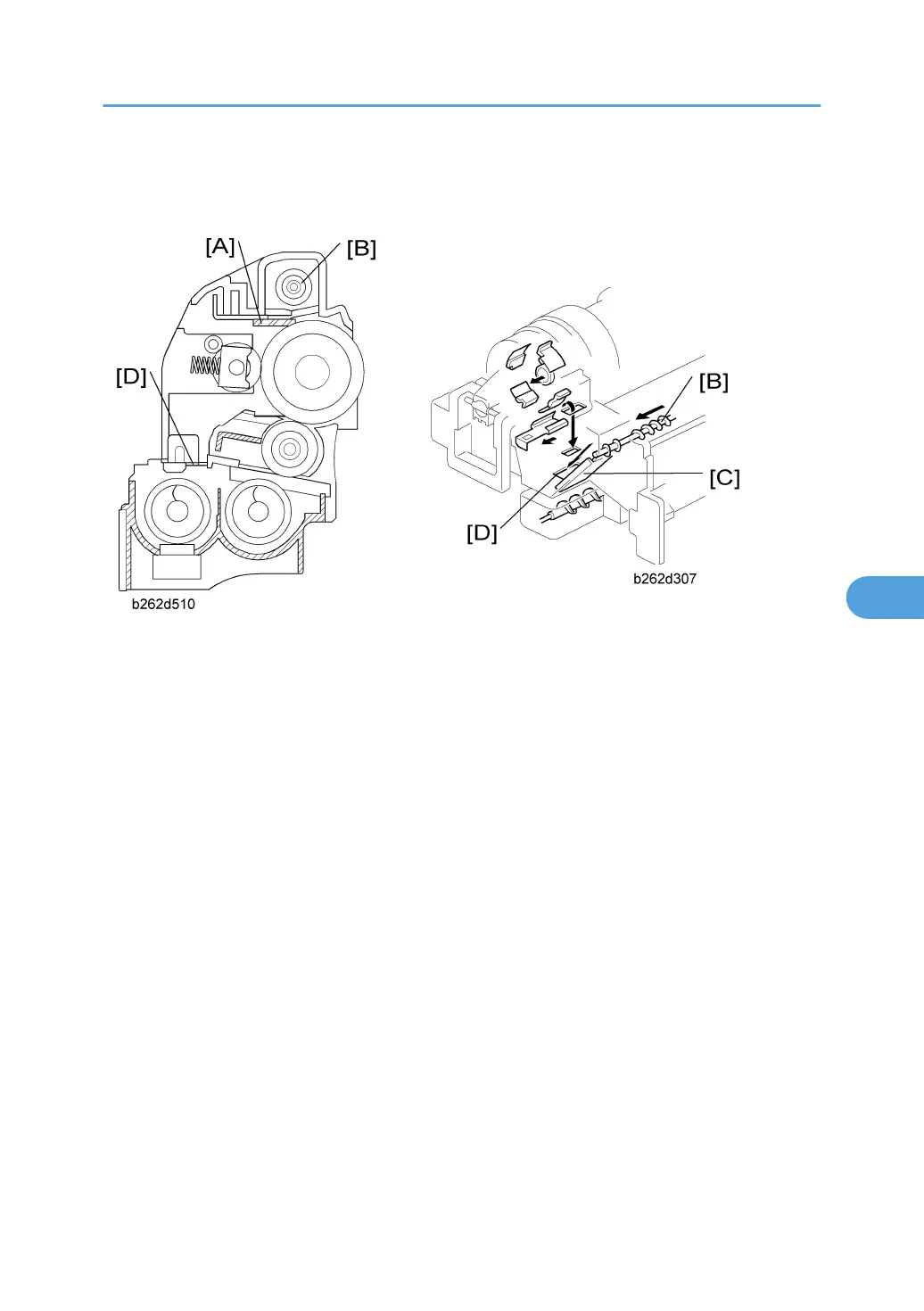

• Cleaning blade [A] scrapes remaining toner from the drum after image transfer. Toner piles up on the
blade.
• Toner collect coil [B] transports toner from pile and drops it onto chute [C], where it slides down into
the development unit through a slit located at [D].
• At the end of each copy job, the drum turns about 3 mm in reverse to help clear toner and other debris
from the edge of the cleaner blade.
