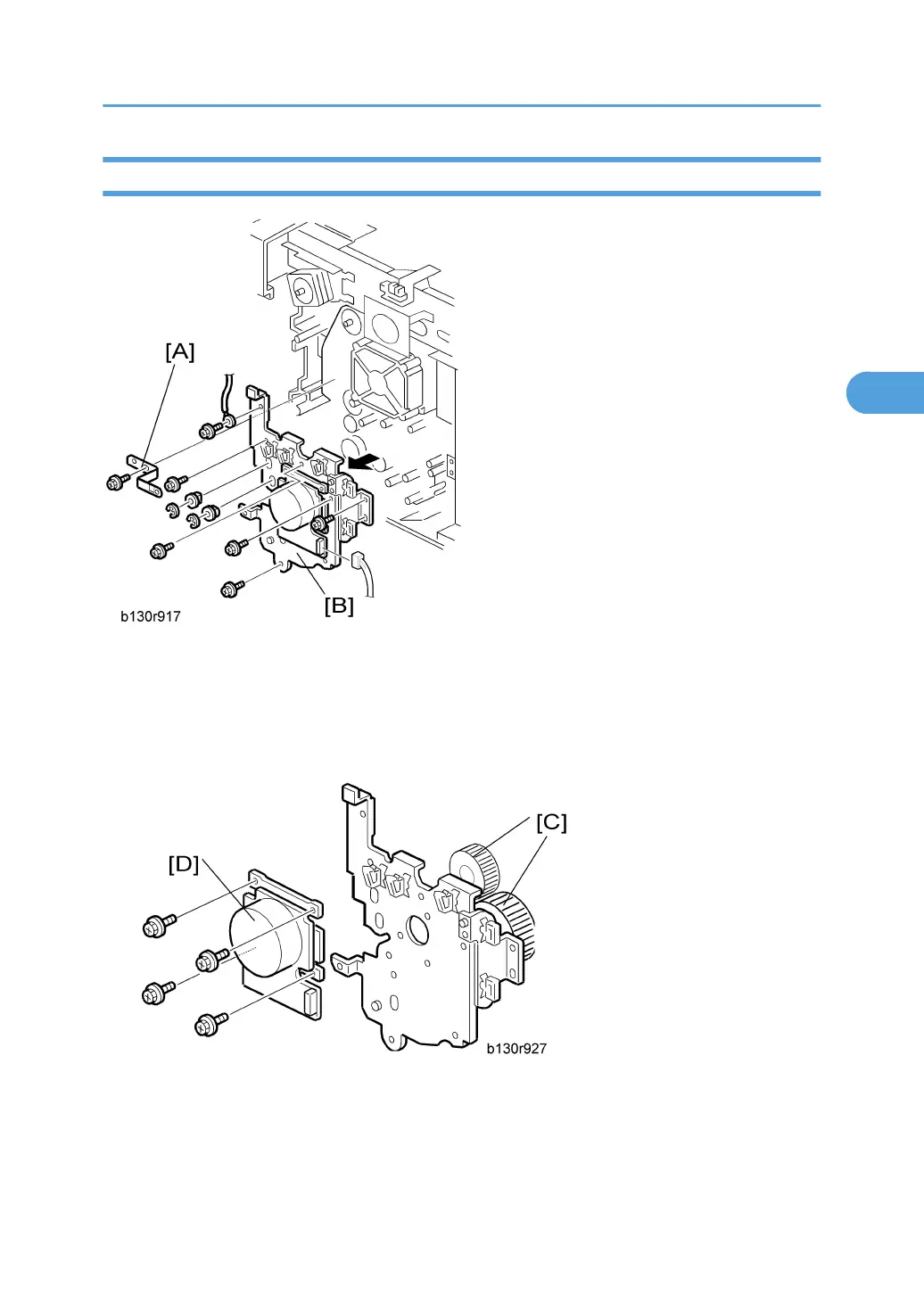

Main Motor
1. Rear cover (* "Rear Cover")
2. High-voltage power supply board (* "High-Voltage Power Supply Board")
3. Ground plate [A] ( x 1)
4. Main motor with the gear cover [B] ( x 1, x 7, x 2, 2 bushings)
5. All gears [C]
6. Main motor [D] ( x 4)
Reassembling
Attach the main motor before attaching the gears.
Exhaust Fan and Main Motor
67
3
