Drum Drive

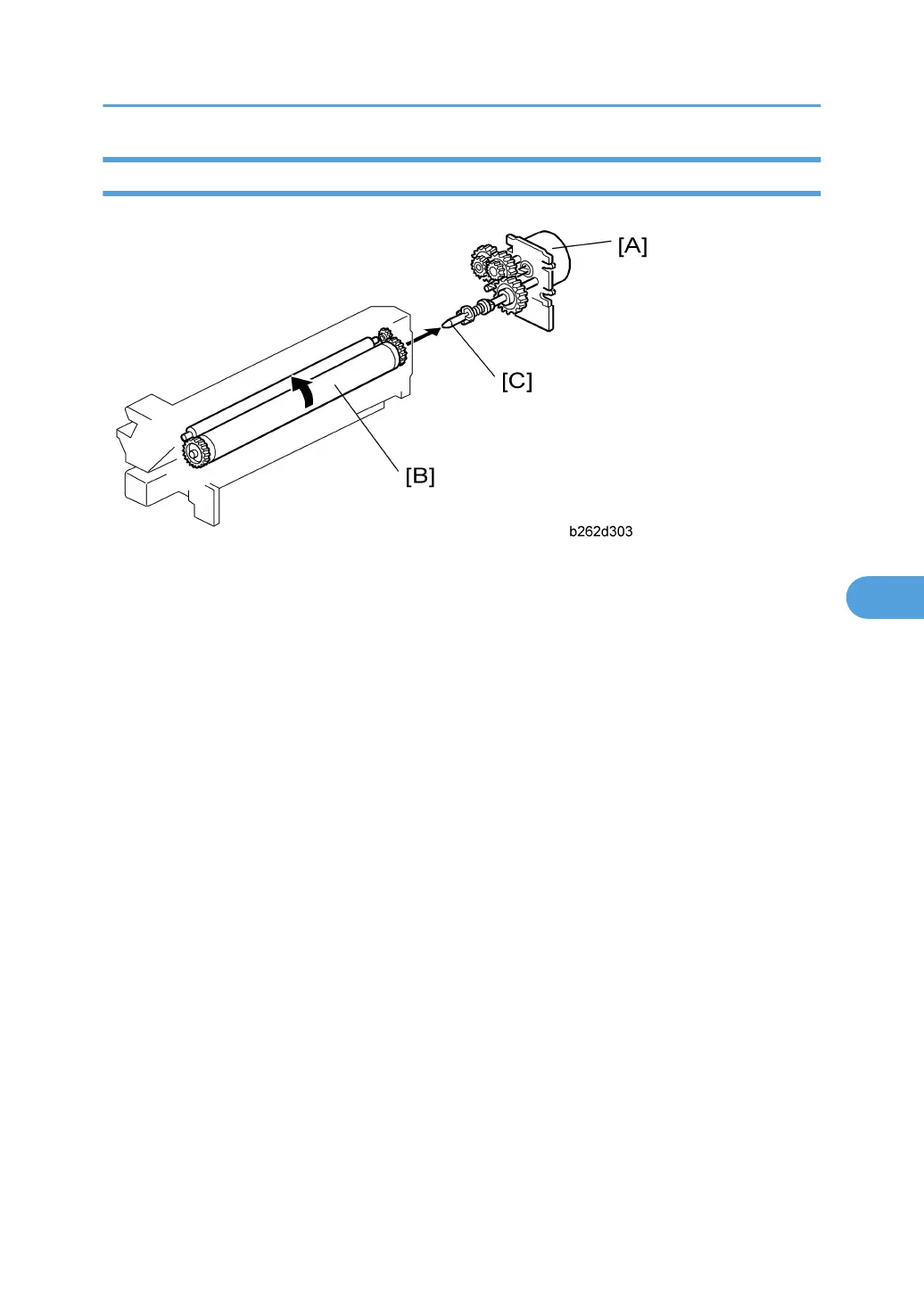

The main motor [A] drives the drum [B] through a series of gears and the drum drive shaft [C].
Photoconductor Unit (PCU)
261
6
