BICU and Controller Board
• Turn off the main power switch and unplug the machine before starting replacement.
• Before turning off the main power switch, check that no mechanical component is operating.
Mechanical components may stop out of their home positions if you turn off the main power switch
while they are operating. The component may be damaged if you try to remove it when it is not in the
home position.
BICU
• Before replacing the NVRAM, be sure to save the NVRAM data.
• Saving from the BICU NVRAM to an SD card (* "NVRAM Data Upload/Download
(SP5-824/825)" in the chapter "Service Tables")
1. Rear cover (* "Rear Cover")

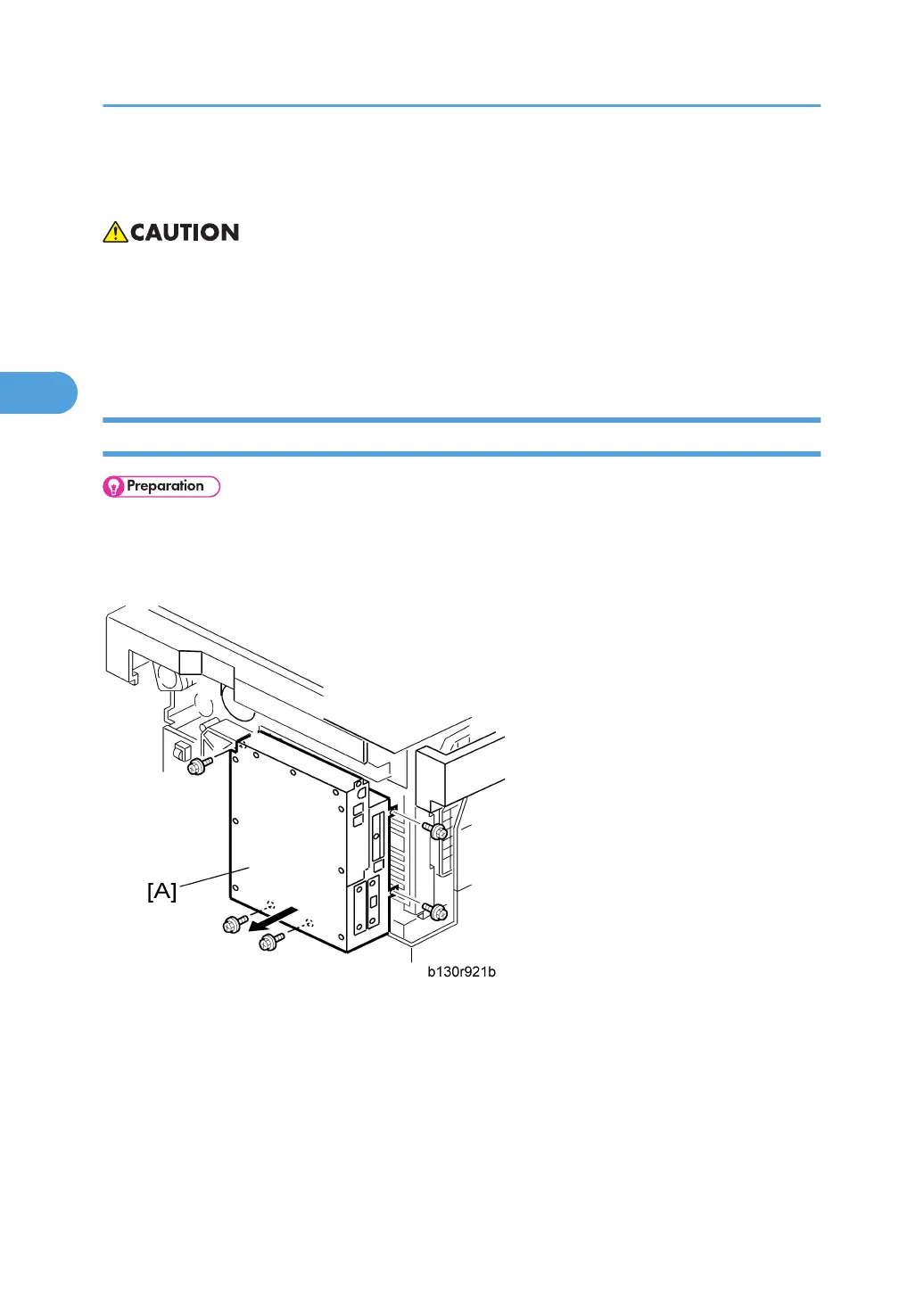

2. Controller box [A] ( x 5)
3. Replacement and Adjustment
