DF Registration and DF Exit Sensor
1. Open the DF left cover.
2. Original feed unit (* "Original Feed Unit")
3. DF feed clutch (* "DF Feed Clutch")
4. Original feed-in guide plate (* "Original Set and Inverter Sensor")
5. DF feed motor (* "DF Feed Motor")
6. DF transport motor (* "DF Transport Motor")

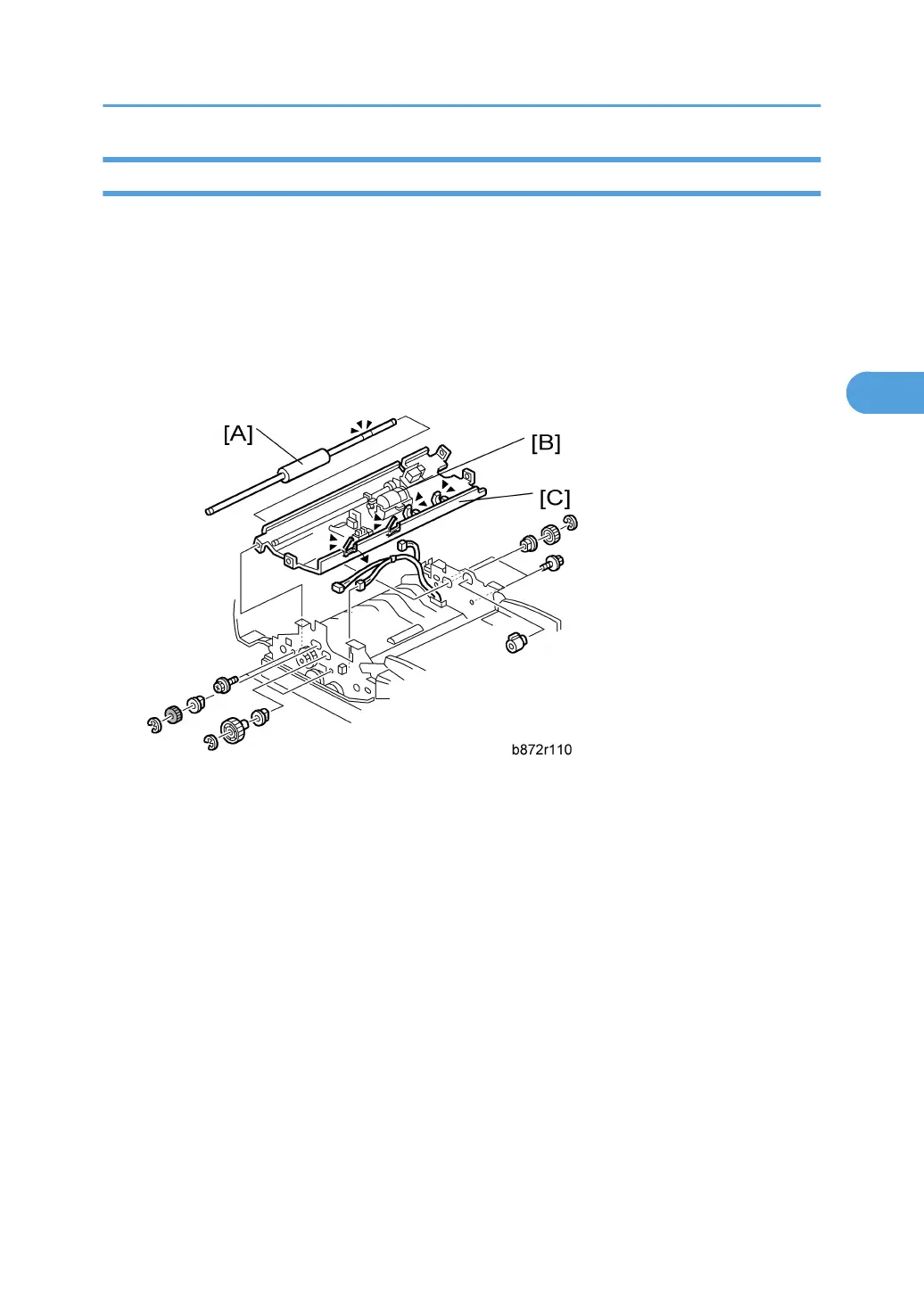

7. DF transport roller [A] ( x 2, gear x 2, bushing x 2)
8. DF separation roller unit [B] ( x 2, gear x 1, bushing x 2)
9. Inverter upper guide plate [C] ( x 4, x 3, x 4)
ARDF
95
3
