Ricoh S-C3 F - Bypass Paper End Sensor

4. Registration sensor feeler [B]
5. Registration sensor [C] ( x 1)
• Disconnect the connector (CN127 [D]) if you have difficulty removing the registration sensor.

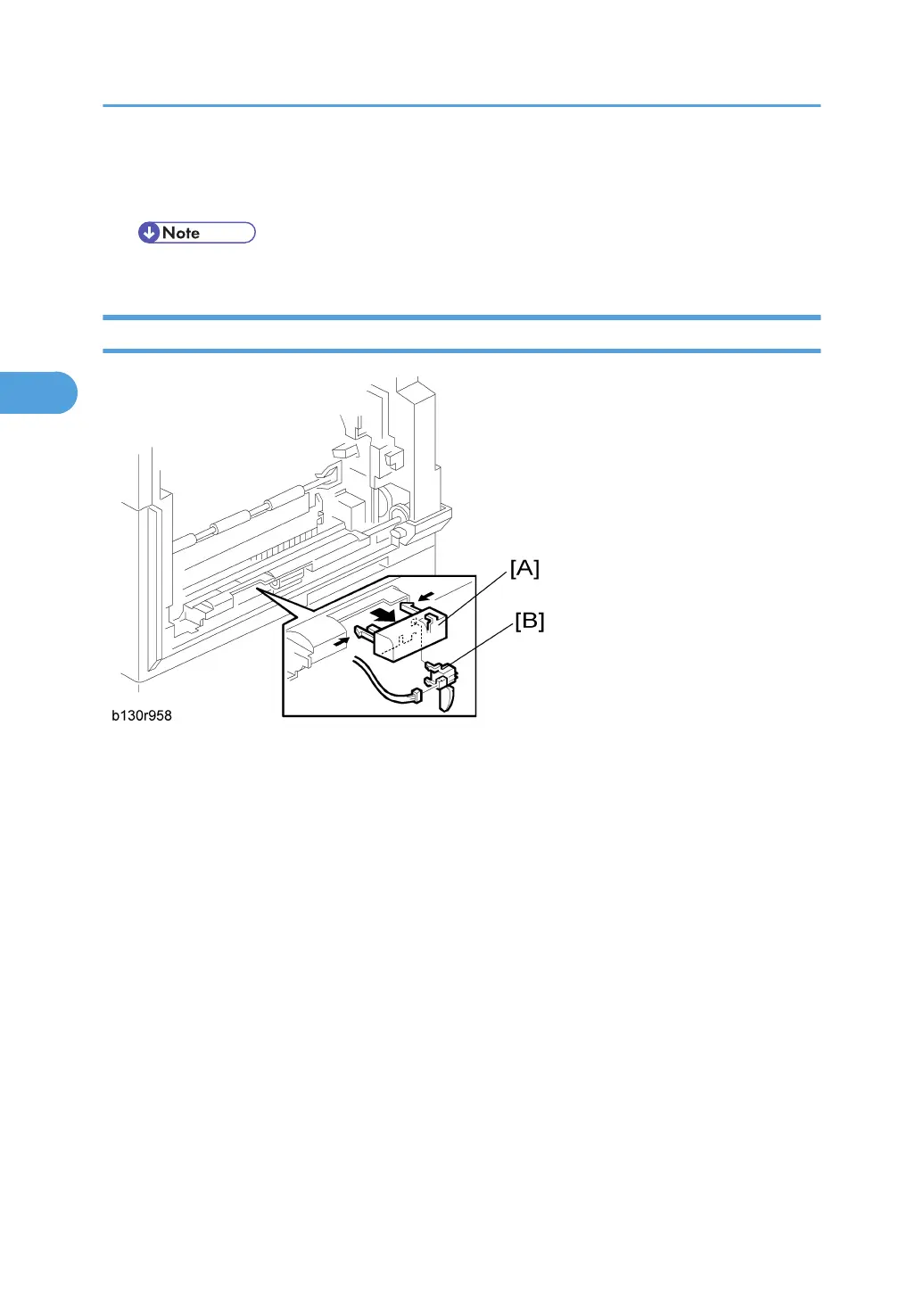

Bypass Paper End Sensor
1. Right door (* "Right Door")
2. Sensor compartment [A]
3. Bypass paper end sensor [B] ( x 1)
