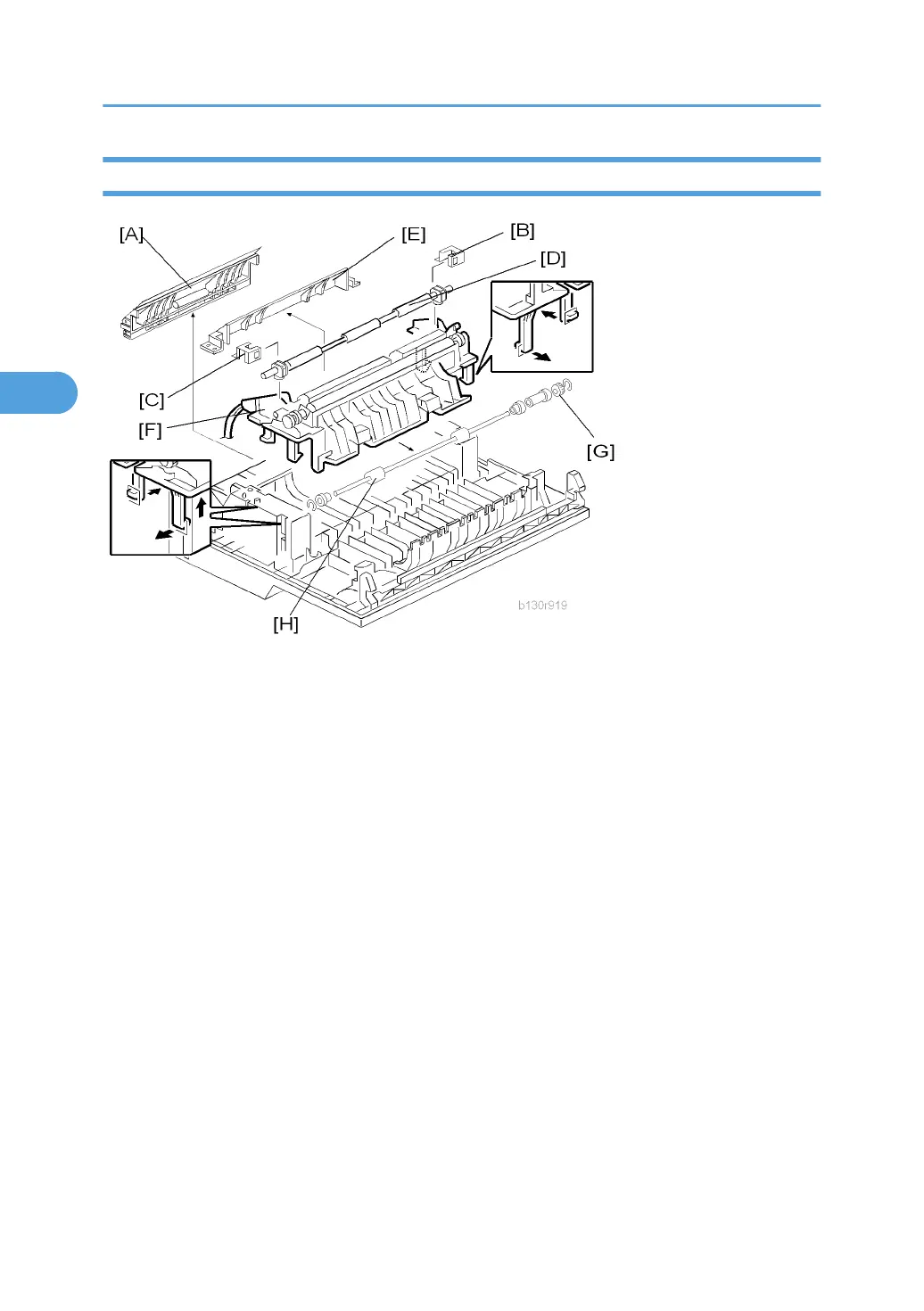

ID Sensor and Duplex Roller
1.
Right door (
*
"Right Door")
2.
Lower guide [A]
3.
Idle roller holders [B][C]
4.
Idle roller [D]
5.
Roller guide [E]
6.
Transfer unit [F]
7.
One-way gear [G] (
x 1)
8.
Duplex roller [H] (
x 1, 3 bushings)
