Duplex Unit
Important Components

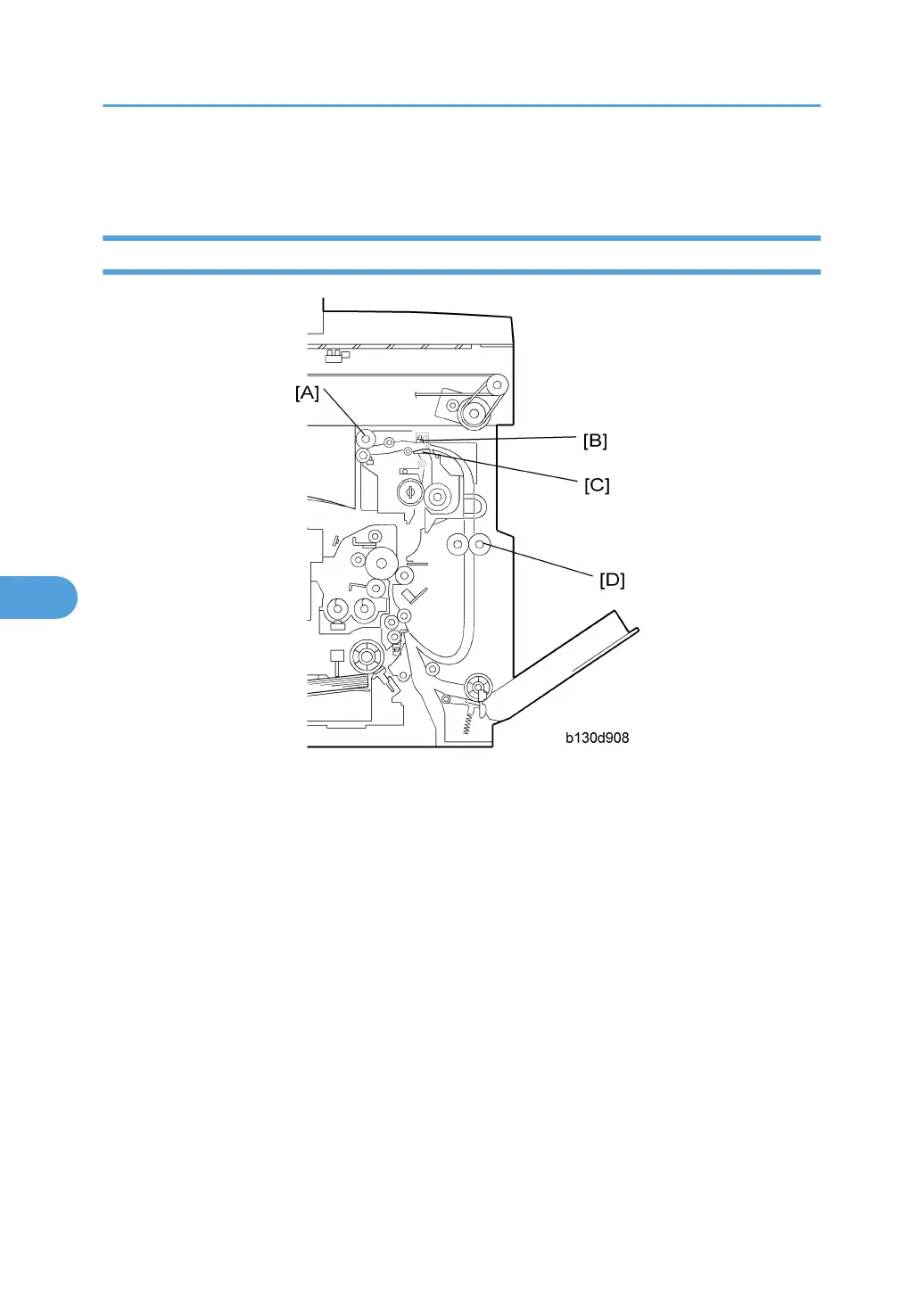

The following components play important roles in duplex printing:
• The duplex motor drives the exit roller [A] and duplex roller [D].
• One of the paper guides on the fusing unit [C] is linked to the paper path sensor [B].
The bypass tray cannot be used for duplex printing.
6. Detailed Section Descriptions
