Ricoh S-C3 F - Drive Layout

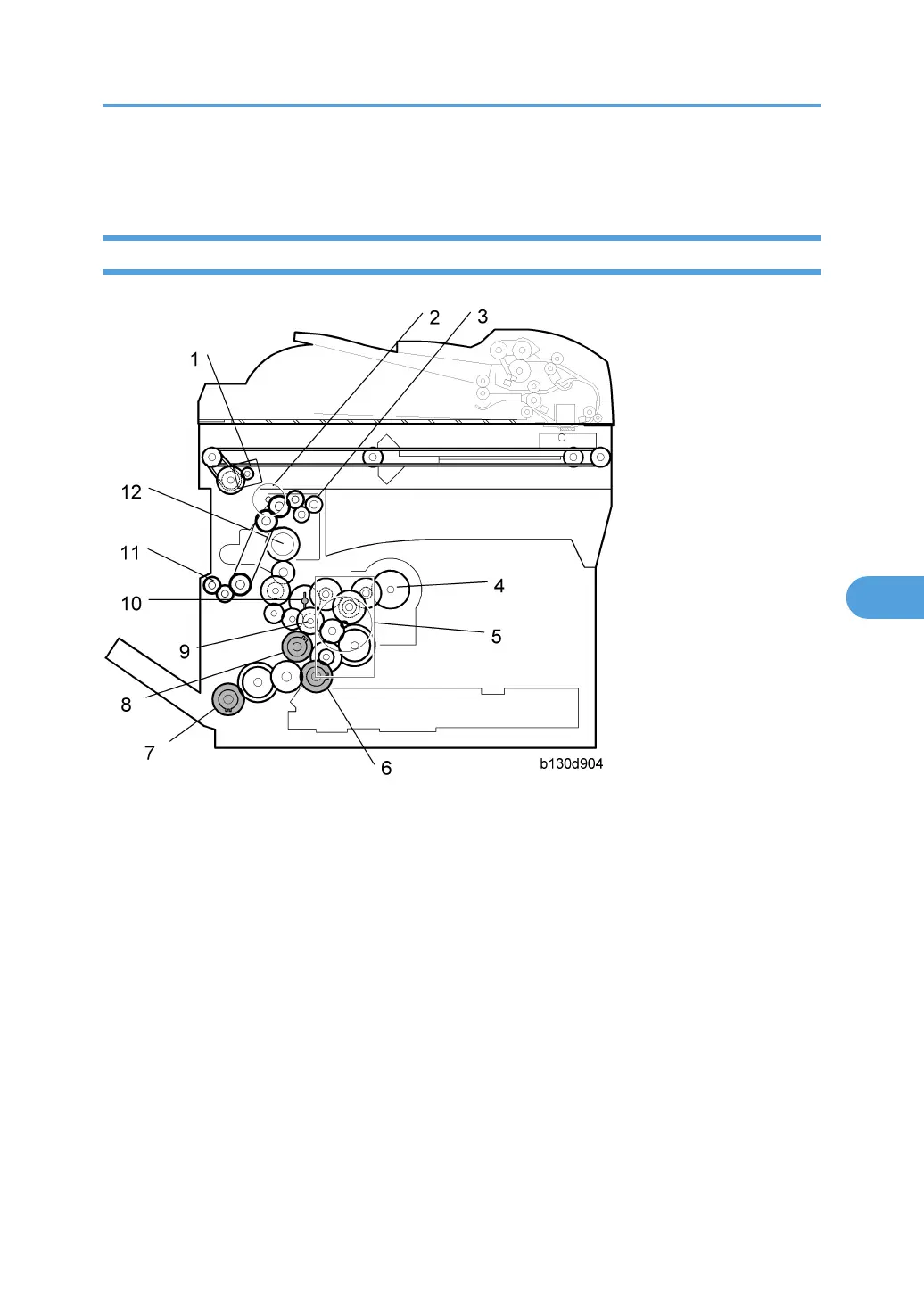

Drive Layout
Mainframe
1. Scanner Motor
2. Duplex motor
3. Exit Roller
4. Toner Bottle Clutch
5. Main Motor
6. Paper Feed Clutch
7. Bypass Feed Clutch (By-pass Tray)
8. Registration Clutch
9. Developer Driver Gear
10. Drum Drive Gear
11. One-way Gear (Duplex Unit)
12. Fusing Drive Gear
Drive Layout
243
6
