The copier takes a shorter time to heat the hot roller when the roller is not turning.
The temperature of the hot roller surface may become uneven when the hot roller temperature is low
and the roller is not turning.

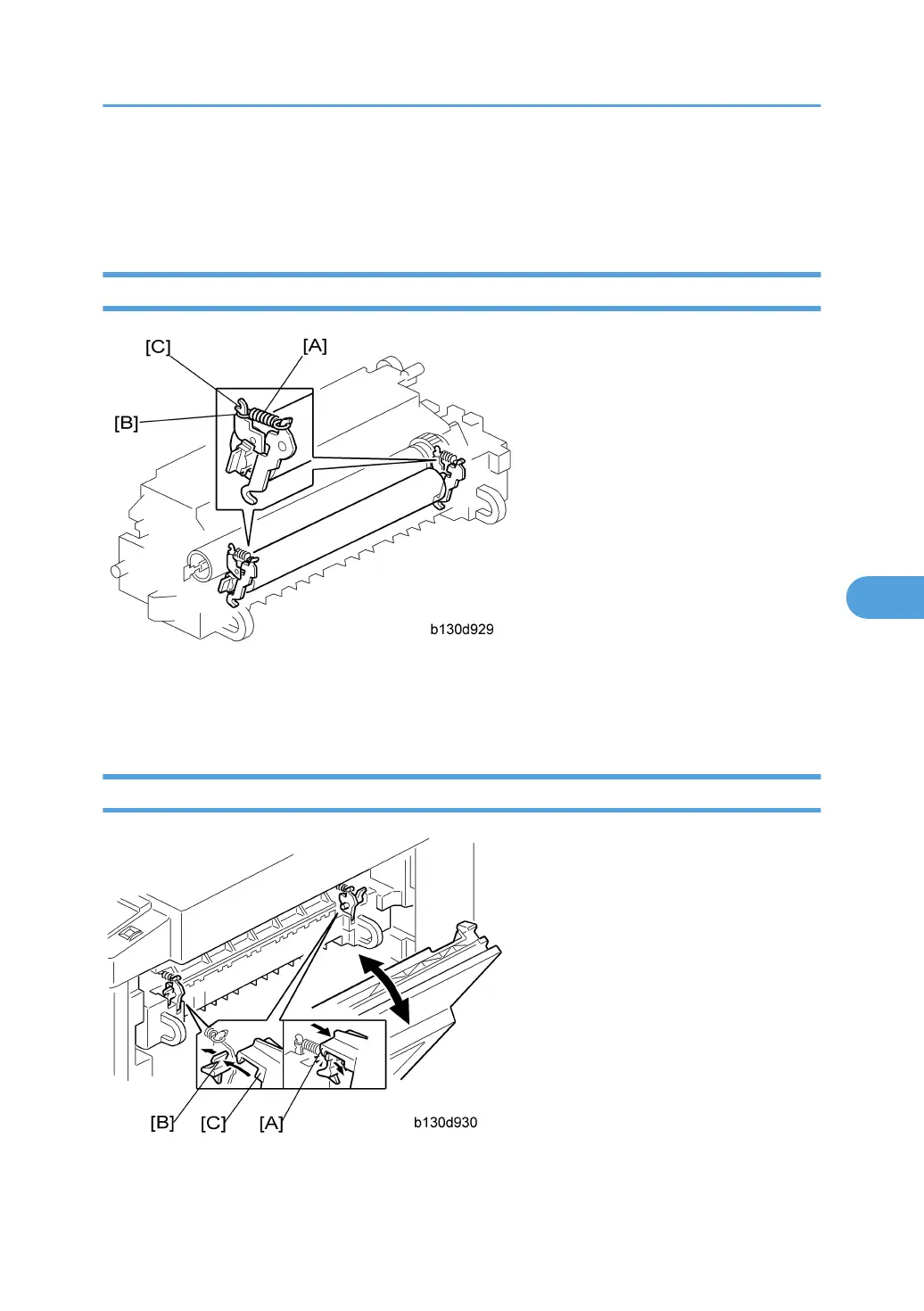

Pressure Roller
The pressure springs [A] constantly press the pressure roller against the hot roller. As the default, the springs
are positioned at the lower notch [B]. If necessary, pressure can be decreased by changing the springs to
the upper notch [C].
Pressure Release
Image Fusing and Paper Exit
285
6
